Front Final Drive






Installation Position of Bonded Rubber Bushing

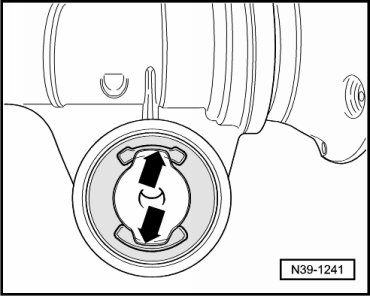

Bonded rubber bushings with 2 recesses

- The recesses in the bushing must be vertical relative to final drive - arrows -.

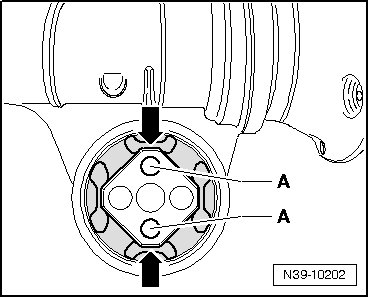

Bonded rubber bushings with 4 recesses

The smaller recesses - arrows - and smaller holes - A - of bushings must be vertical relative to final drive.
