Home >> Audi >> 2012 >> Q7 Quattro (4LB) V6-3.0L SC (CJWC) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Application and ID >> Rear Final Drive 0AQ (0ATA,08DA,09DA,0BQA Transmission) >> Code Letters, Transmission Allocation and Capacities

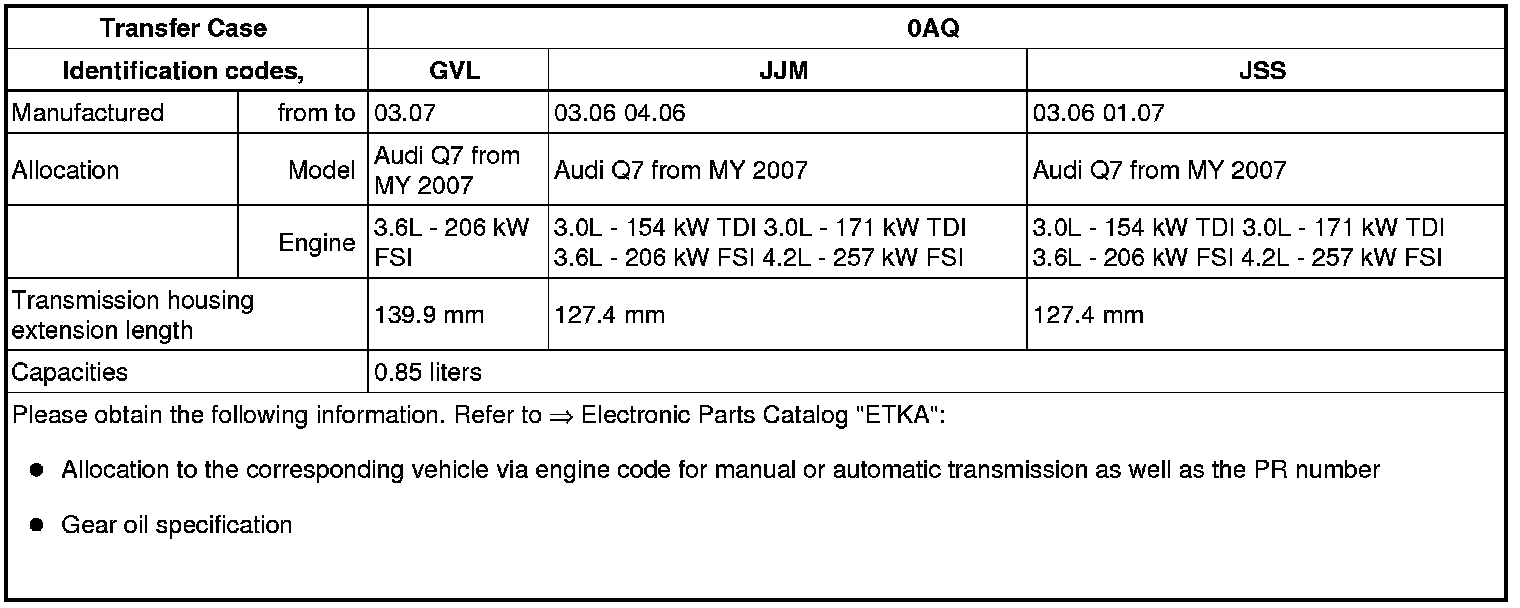

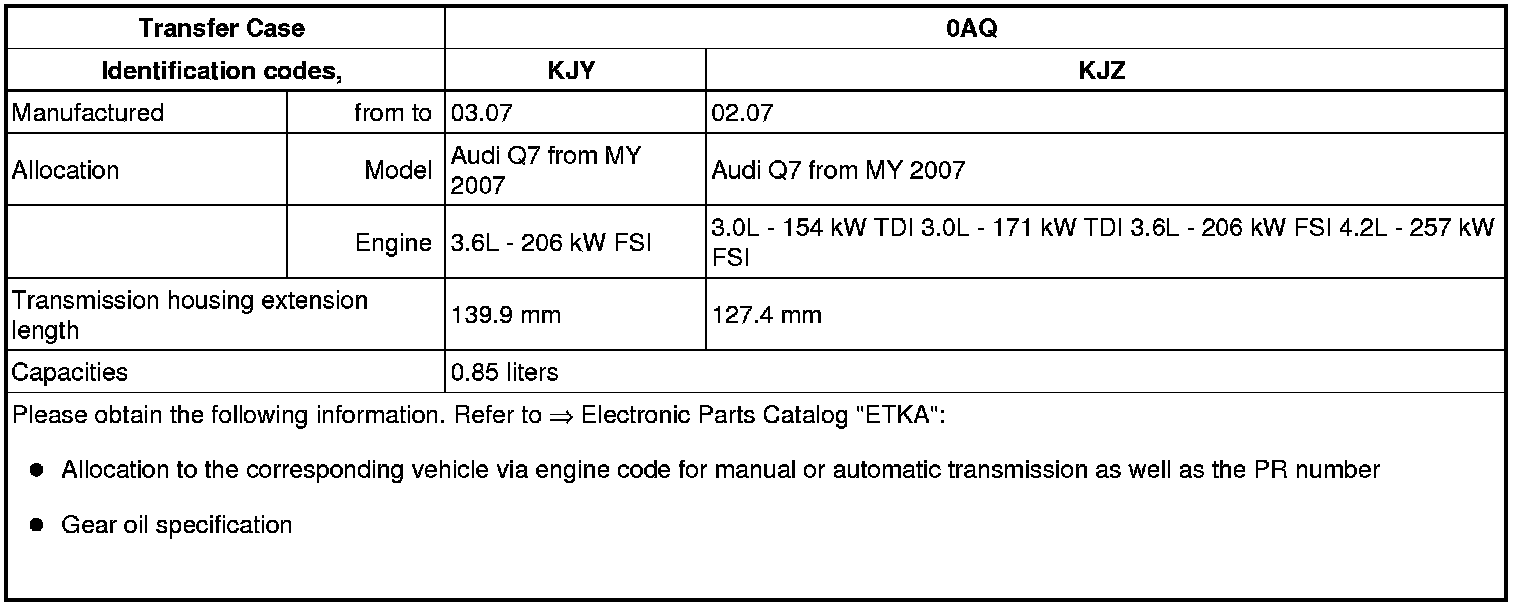

Code Letters, Transmission Allocation and Capacities






Code Letters, Transmission Allocation and Capacities
