Body - Noises From The Sunroof Area: Overview
60 Noises from sunroof60 11 17
2022733/6
January 5, 2012.

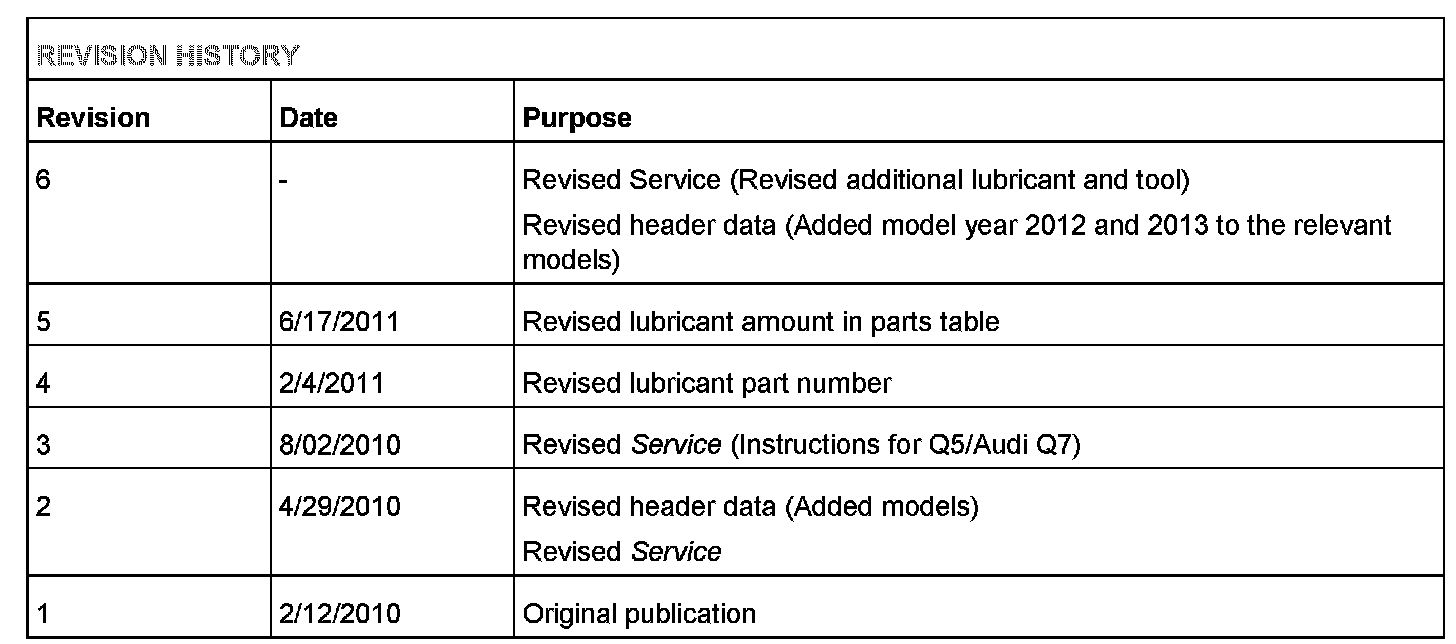

Supersedes Technical Service Bulletin Group 60 number 11 - 15 dated June 17, 2011 for reasons listed below.

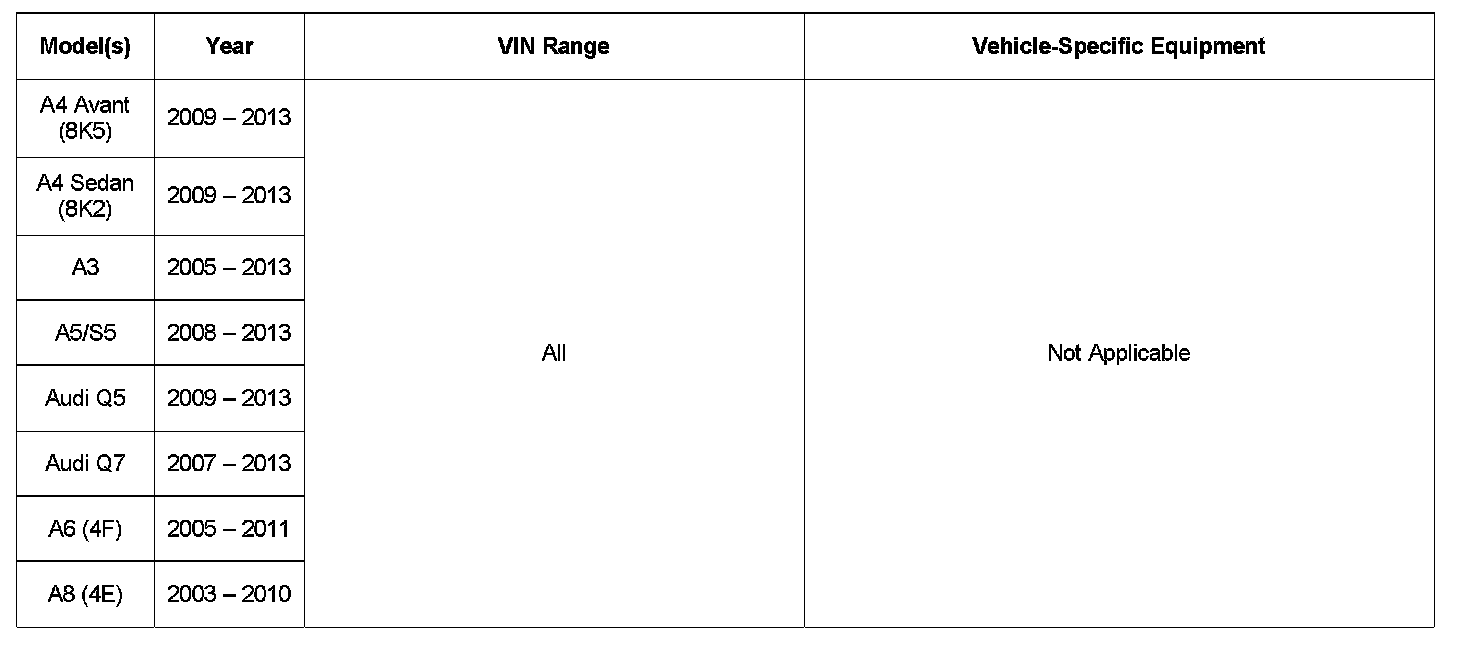

Affected Vehicles
Condition
Various noises from the sunroof.
Technical background
Over time the lubrication in the sunroof mechanism and seals degrades due to exposure to heat, moisture, and regular use. In order to maintain optimal sunroof operation, regular lubrication maintenance must be performed.
Production Solution
A slightly greater amount of lubricant is used.
Service
Depending on the model three types of lubricant are used in the operation. Lubricate the seals with G 052 141 A2 special lubricating paste. The mechanical components will be lubricated with either G 060 751 A2 or G 060 751 A3 lubricating paste. Lubricate the specific areas indicated by model as follows.
A4 Avant:

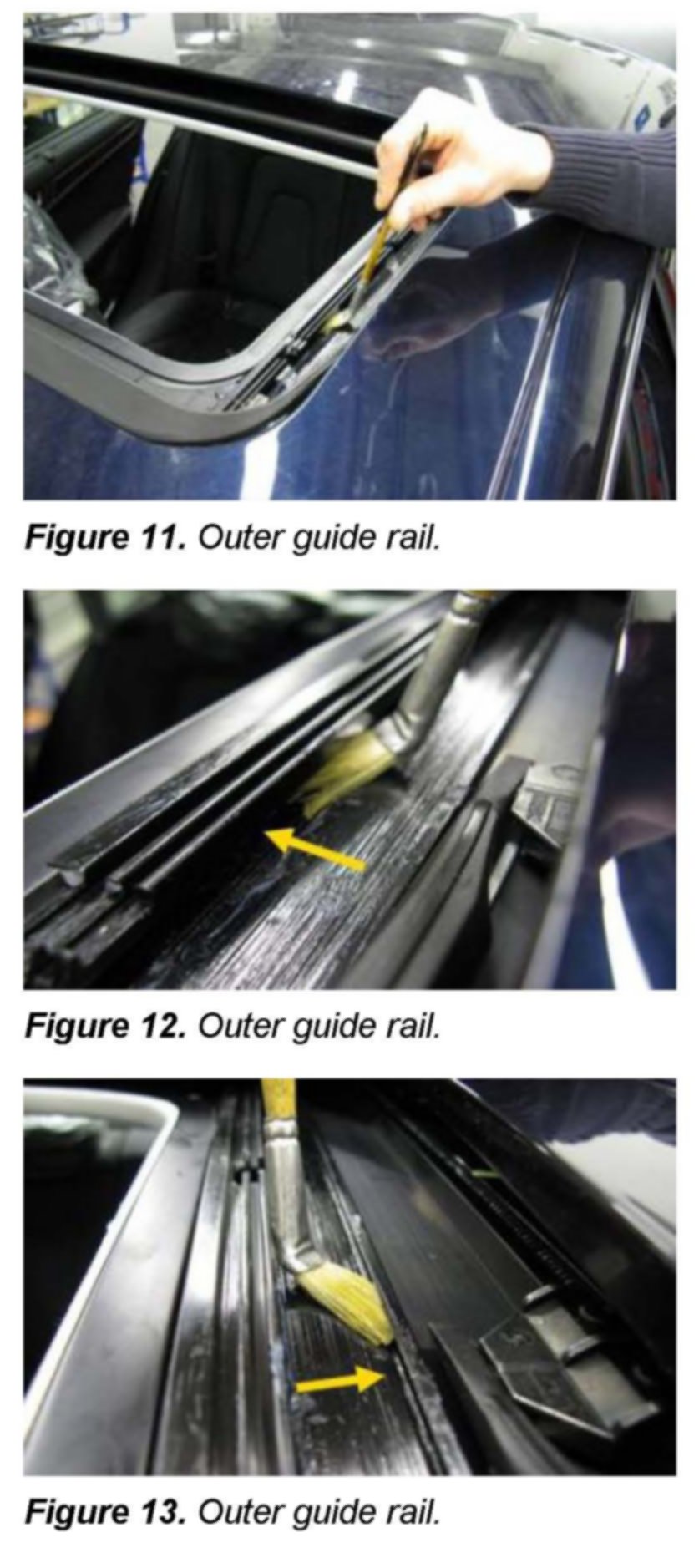

1. Before lubricating, thoroughly clean the seals and the guide rails with a dry cloth.

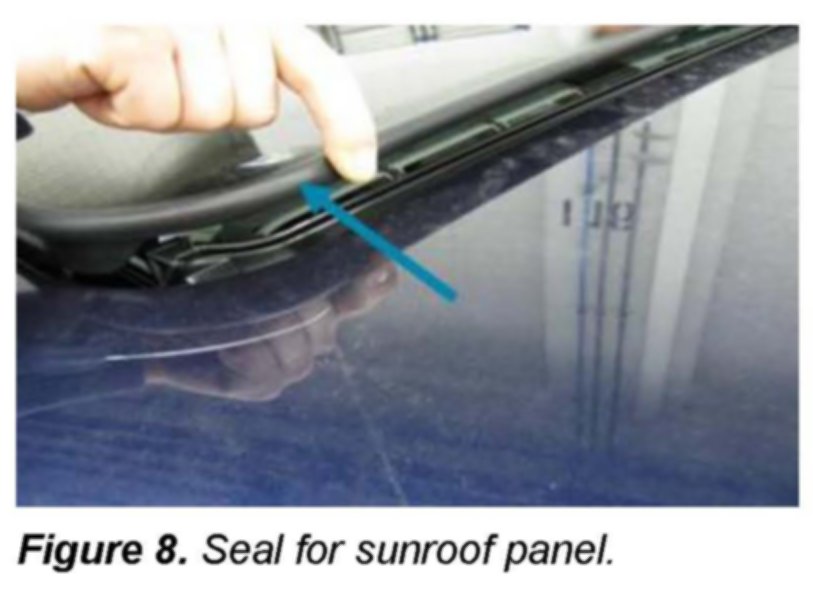

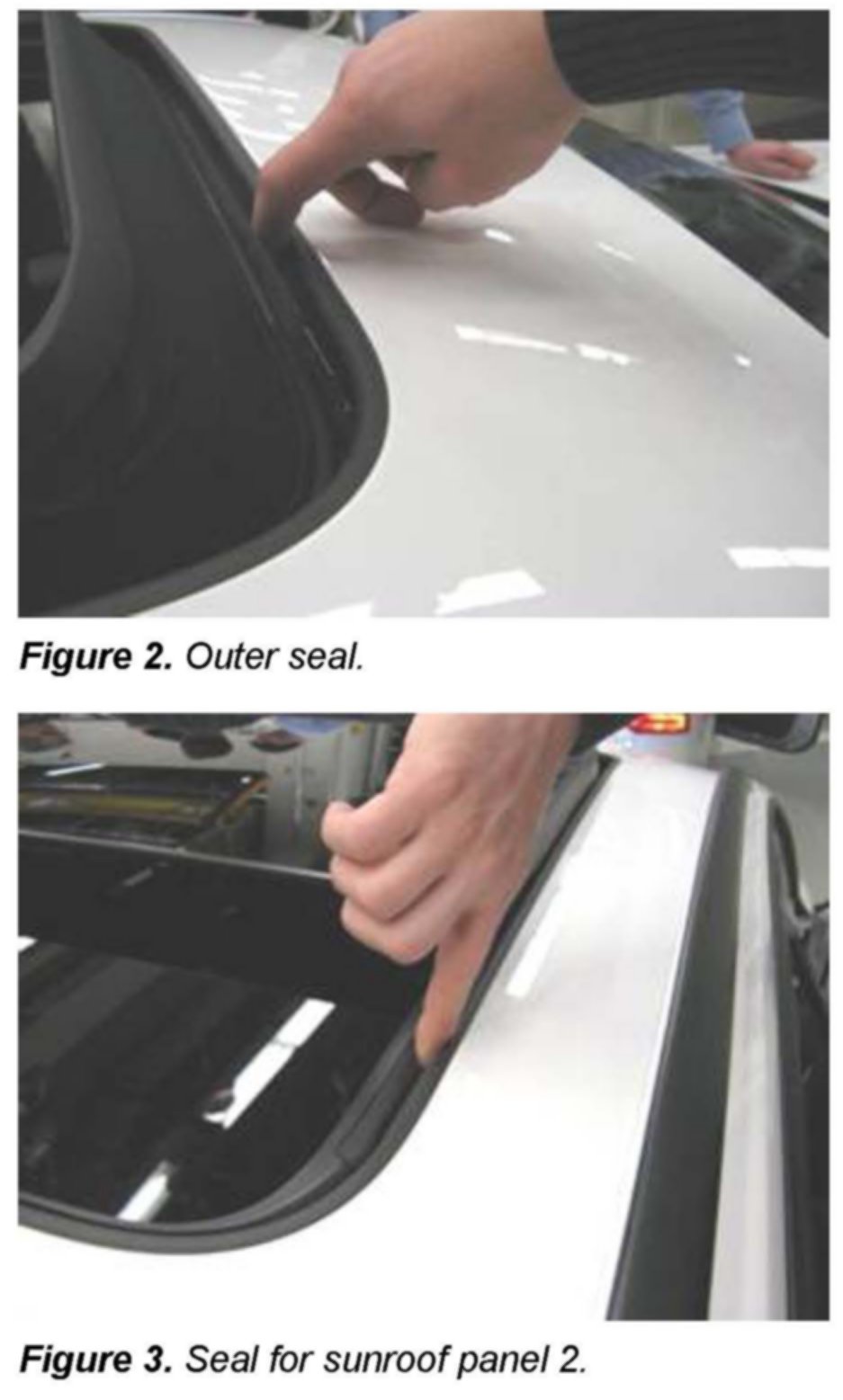

2. Lubricate the seals with special lubricating paste G 052 141 A2.
Tip: No parts have to be removed. It is only necessary to completely open the sunroof panel.

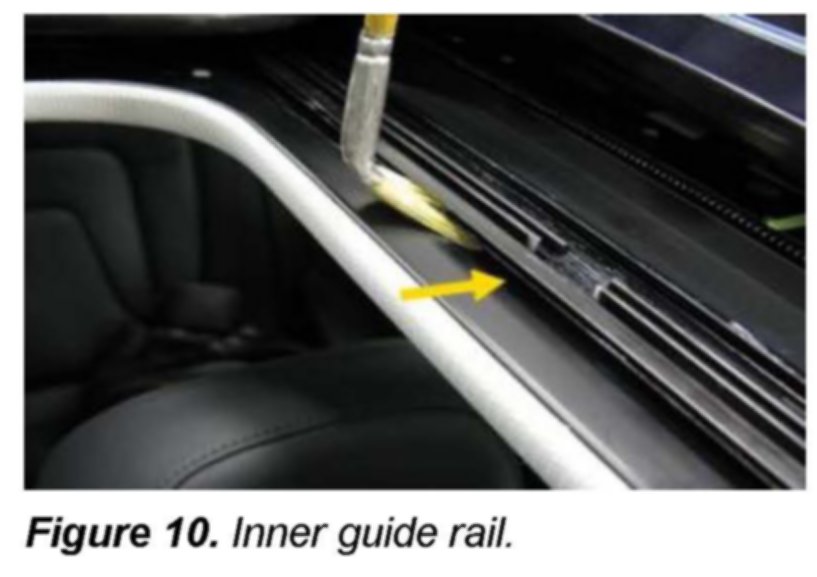

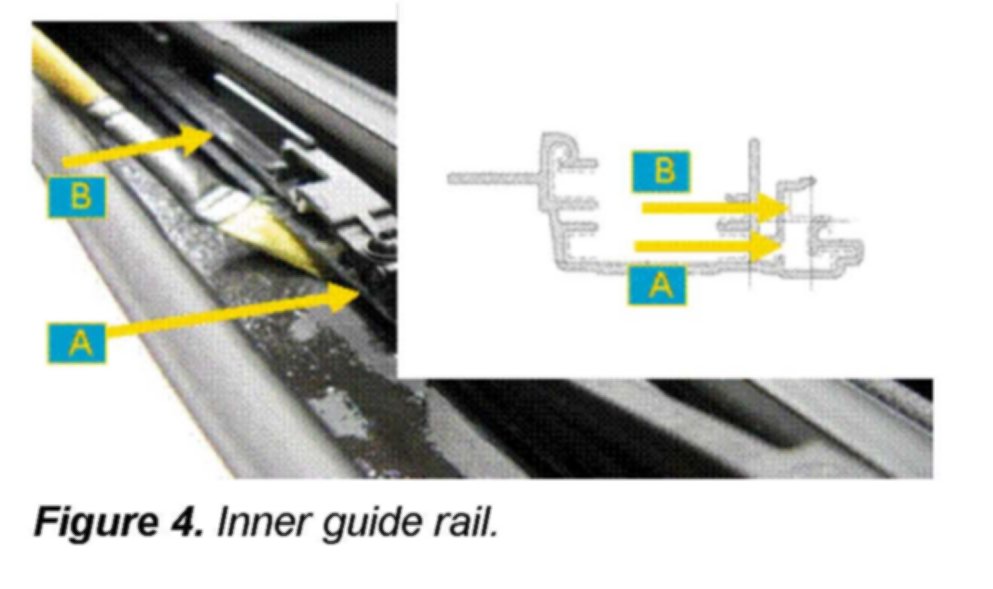

3. Lubricate the mechanism components with lubricating paste G 060 751 A2.
A4 Sedan:

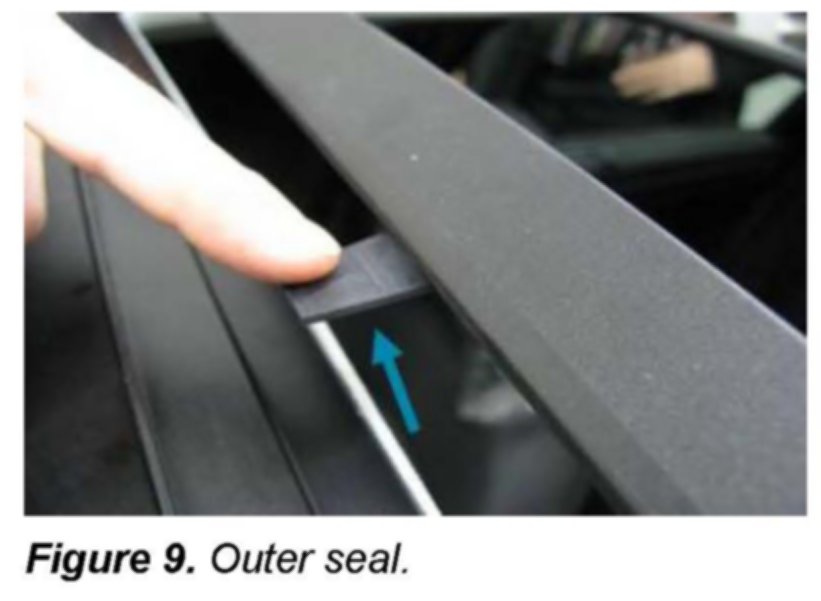

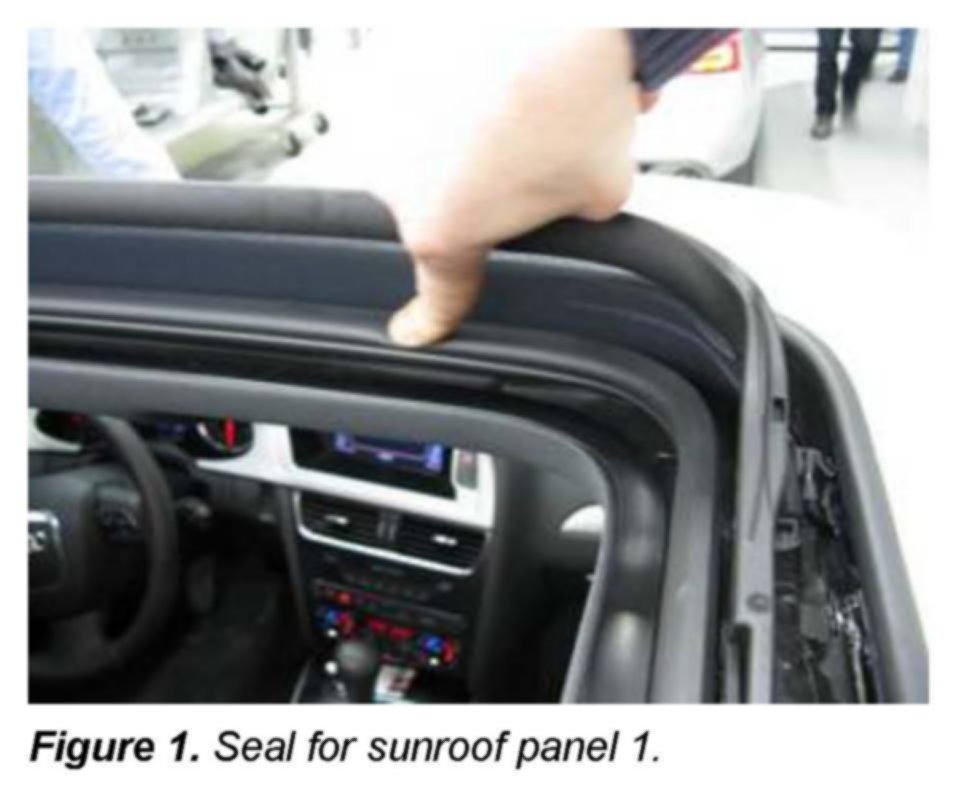

1. Lubricate the seals with special lubricating paste G 052 141 A2.
Tip: No parts have to be removed. It is only necessary to completely open the sunroof panel.
2. Lubricate the underside of the rubber lip of the wind deflector with special lubricating paste G 052 141 A2.

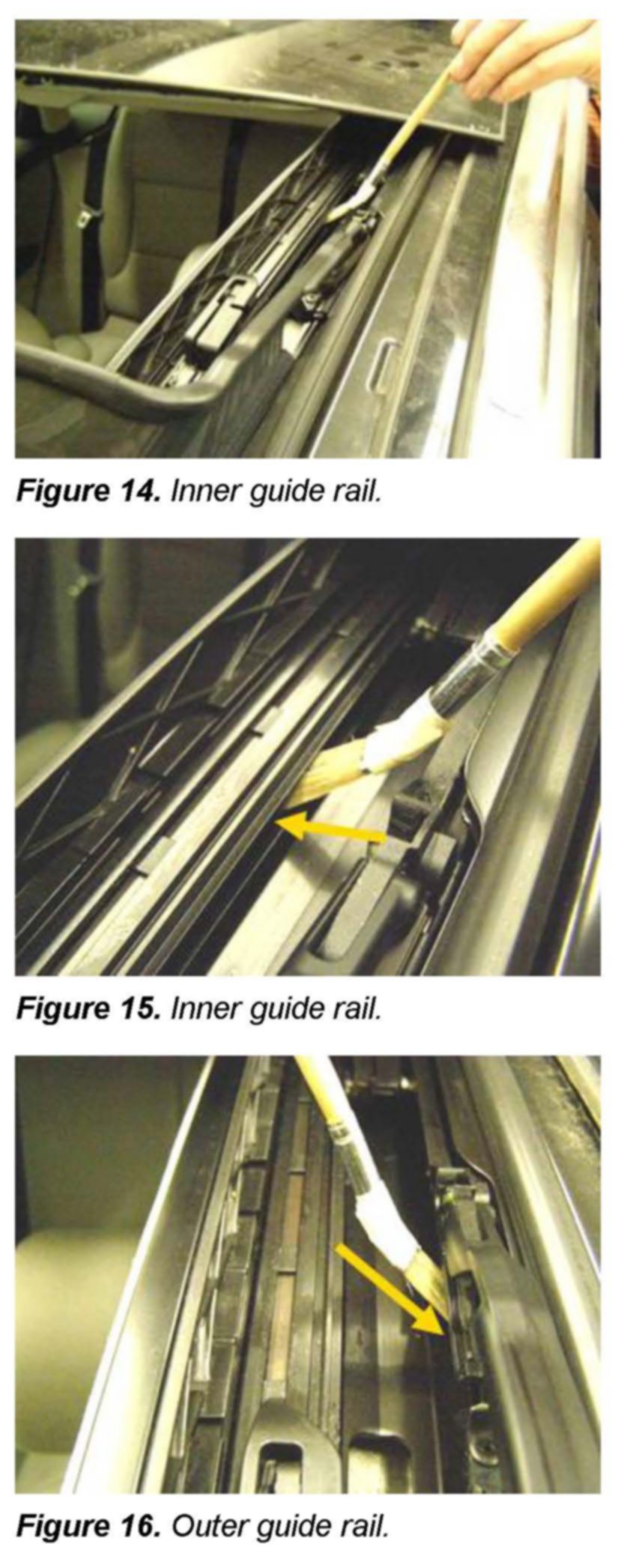

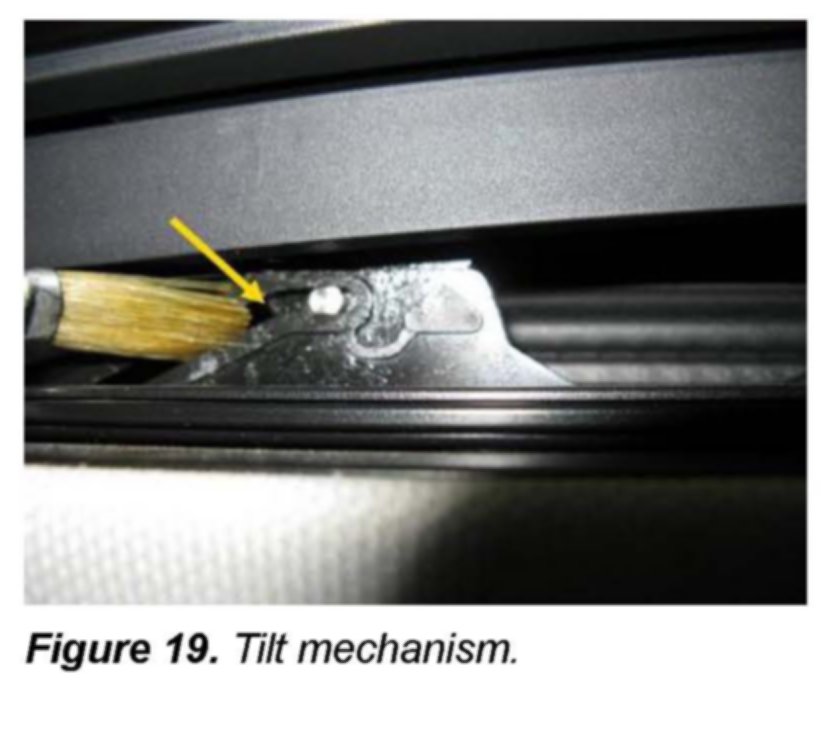

3. Lubricate the mechanism components with lubricating paste G 060 751 A2.
A3:
1. Lubricate the seals with special lubricating paste G 052 141 A2.
Tip: No parts have to be removed. It is only necessary to completely open the sunroof panel.

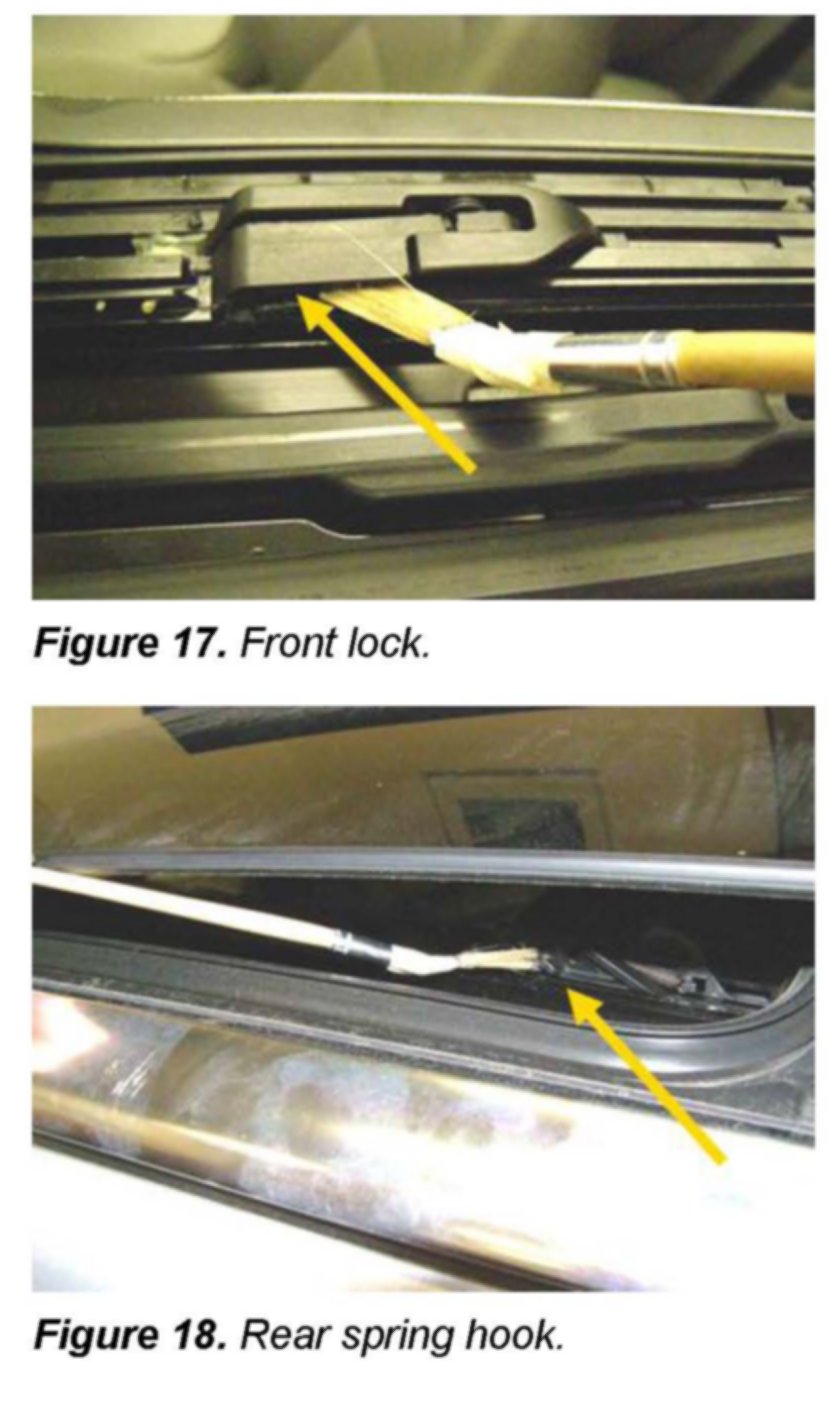

2. Lubricate the mechanism components with lubricating paste G 060 751 A2.
A5/S5:
1. Lubricate the seals with special lubricating paste G 052 141 A2.
Tip: No parts have to be removed. It is only necessary to completely open the sunroof panel.
2. Lubricate the mechanism components with lubricating paste G 060 751 A2.
Audi Q5/Audi Q7:
1. Completely open the front sunroof panel.

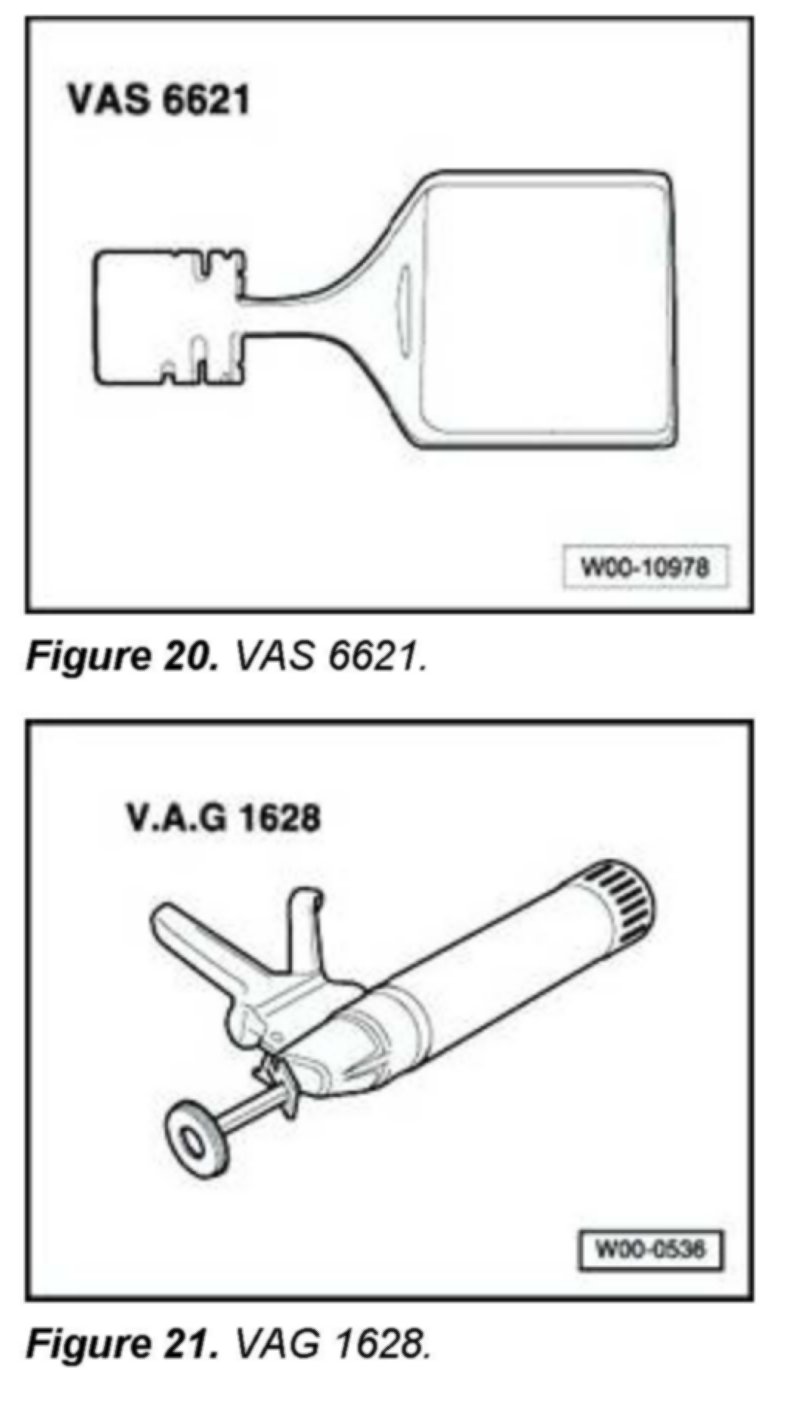

2. The cleaning and lubrication of the rails will be done with the VAS 6621 and the VAG 1628.

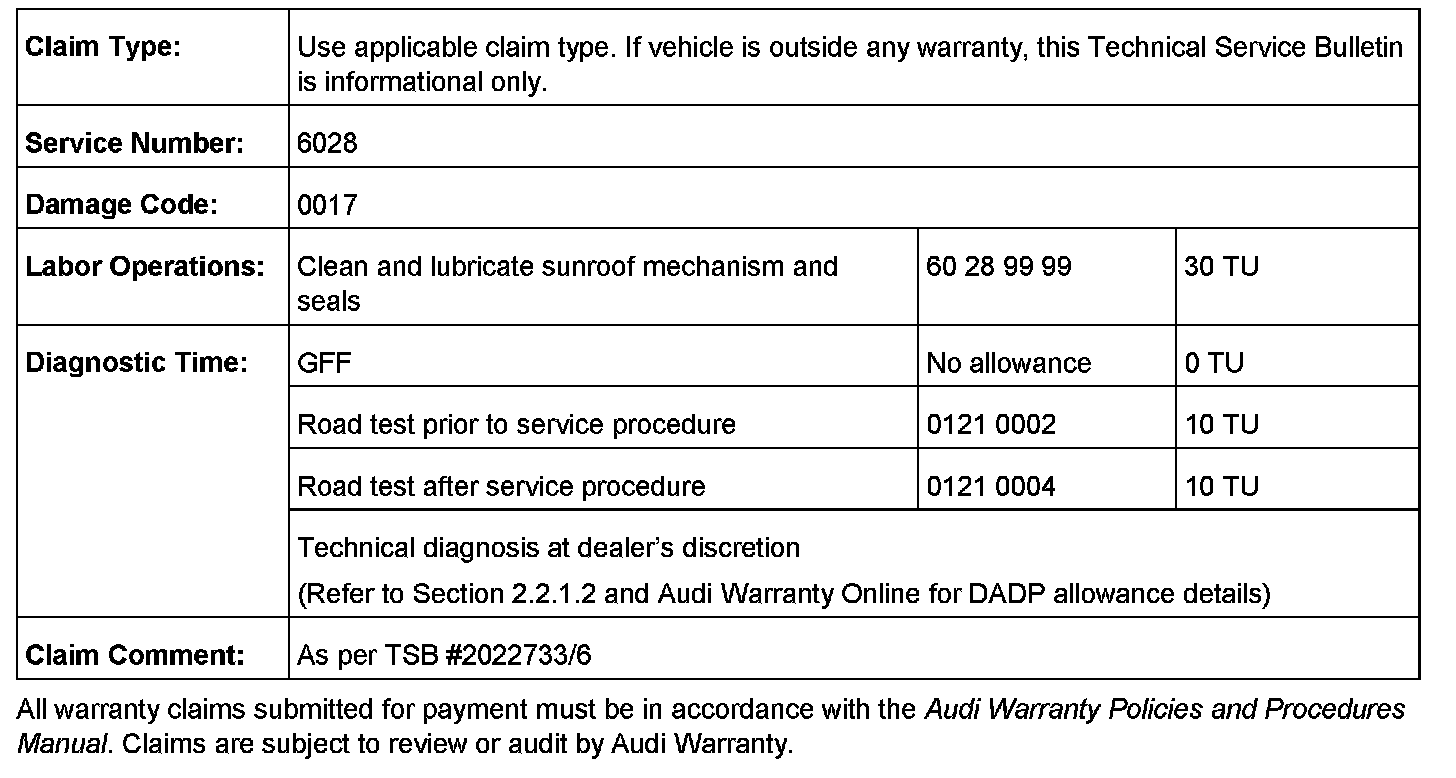

Warranty Information

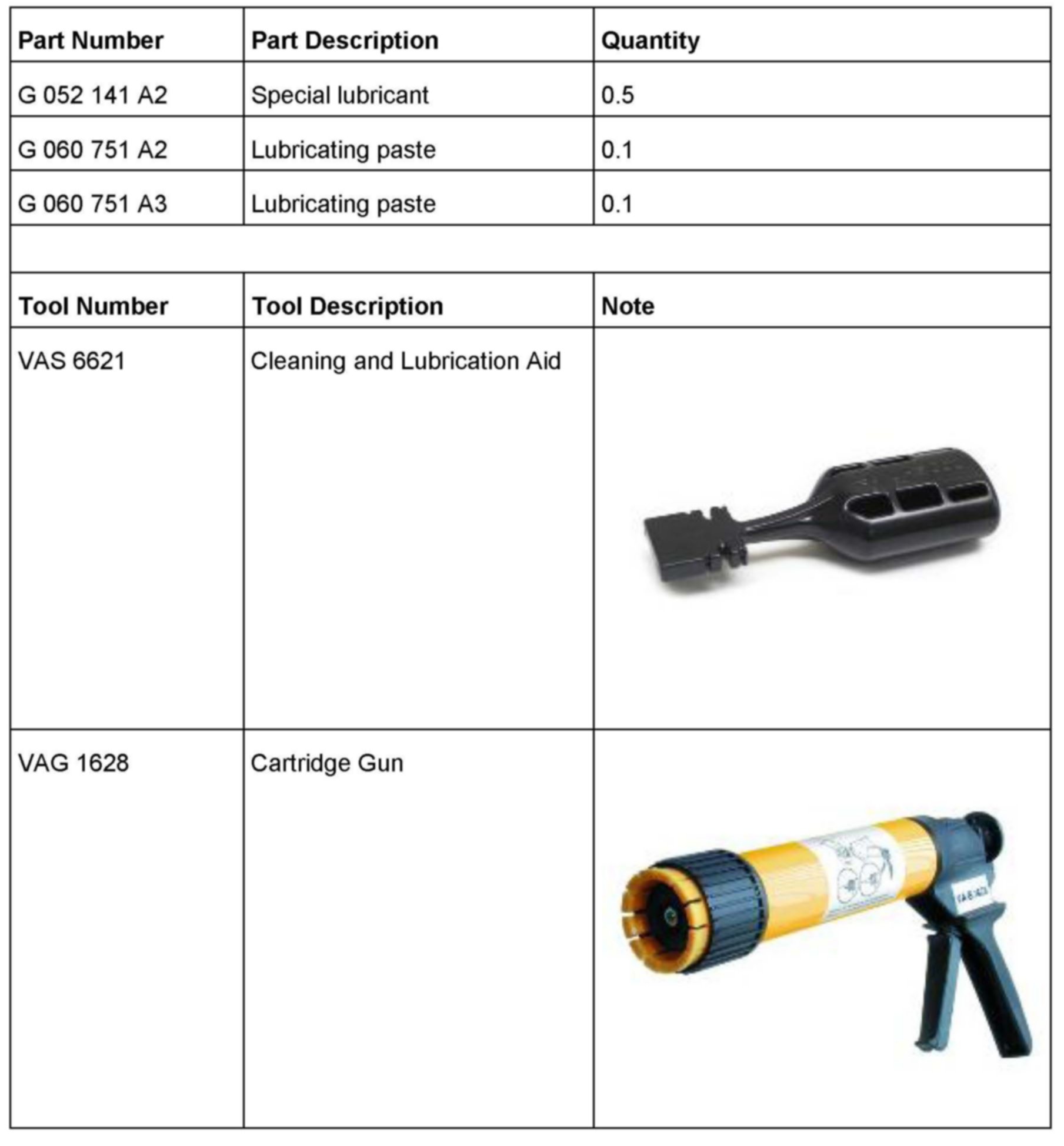

Required Parts and Tools
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
