Pressure Reservoir, Emptying

Pressure Reservoir, Emptying

- Perform pressure reservoir system vent using (vehicle diagnostic tester). Refer to => [ System, Venting or Filling ] System, Venting or Filling.

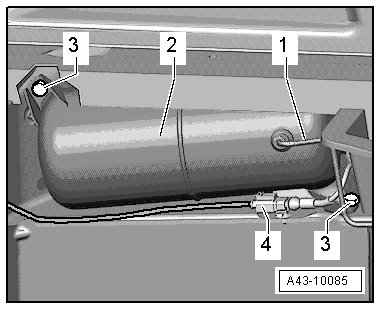

Front Pressure Reservoir, Emptying






- Slowly loosen the air line - 1 - on pressure reservoir - 2 - and allow air pressure to come down. When air pressure has escaped, remove air line - 1 -.

Pressure Reservoir in Luggage Compartment, Emptying






- Slowly loosen air line - 1 - on pressure reservoir - 2 - and allow air pressure to come down. When air pressure has escaped, remove air line - 1 -.
