V6 FSI and TFSI Engines
Power Steering Pump

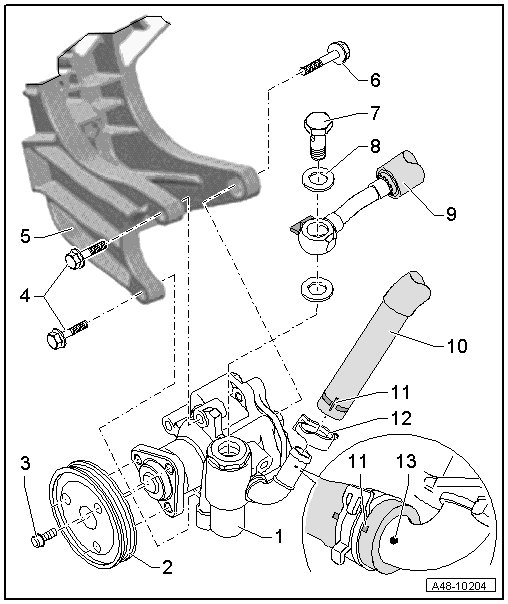

Power Steering Pump, Assembly Overview:
• Always replace seals.
• Do not reuse fluid you have drained.
• Only use hydraulic oil.
1 Power Steering Pump
• For the correct allocation, refer to the Parts Catalog
• Fill with hydraulic oil before installation
• Checking delivery pressure, refer to => [ Power Steering Pump Delivery Pressure, Checking ] Power Steering Pump Delivery Pressure, Checking
• Removing and installing.
2 Belt Pulley
3 Bolt
• 25 Nm
• Quantity: 3
4 Bolt
• 25 Nm
5 Bracket
6 Bolt
• 25 Nm
7 Banjo Bolt
• 35 Nm
8 Seal
• Always replace
9 Pressurized Line
• Note installed position
10 Intake Hose
• Note installation position on reservoir, refer to => [ Lines and Hoses, Overview ] Service and Repair
• Note power steering pump location
11 Marking
• On intake hose
• Marking on intake hose must align with marking on power steering pump.
12 Spring Clamp
• Remove and install with spring type clip pliers (VAS 5024 A)
13 Marking
• On vane pump
• Marking on intake hose must align with marking on power steering pump.

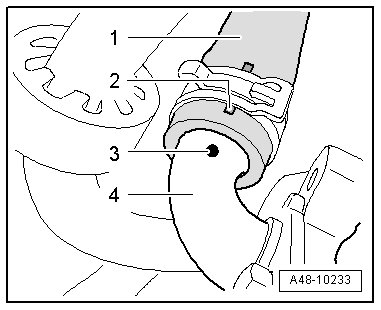

Installation Position of Intake Hose and Pressure Line at Vane Pump
- Install intake hose - 1 - so that the marking - 2 - on it and marking - 3 - on support - 4 - align.
Vane Pump, Removing and Installing:
Special tools, testers and auxiliary items required
• Hose Clamps Up to 25 mm Dia. (3094)
• Torque Wrench 5-50 Nm (V.A.G 1331)
• Spanner Wrench (3212)
• Used Oil Collection and Extraction Device (V.A.G 1782)
• Spring Type Clip Pliers (VAS 5024 A)
• Hydraulic fluid
General Information
Vane pump is not designed to be serviced. If there are customer complaints, the cause must be determined using a pressure and leak test. If there is a malfunction, replace the vane pump.
• If fluid is low in reservoir, always check steering system for leaks.
• If there are leaks in the area of the line connections, the lines/connections must first be inspected for leaks, tightened as necessary and wiped dry.
• Pump is delivered without oil. Therefore, hydraulic oil must be filled before installation and turned by hand. Otherwise, noises when driving or damage to pump may occur.
Removing
- With vehicles with air suspension, place vehicle on hoist. Refer to => [ Positioning Vehicle on Hoist and Wheels ] Positioning Vehicle on Hoist and Wheels.
- Only remove front noise insulation - 1 -.
- Extract hydraulic oil from reservoir using old oil collecting and extracting device (V.A.G 1782).
- Mark ribbed belt running direction.
- Remove ribbed belt.
- Remove bolts - arrows -. Counter hold belt pulley with spanner wrench (3212) when doing so.

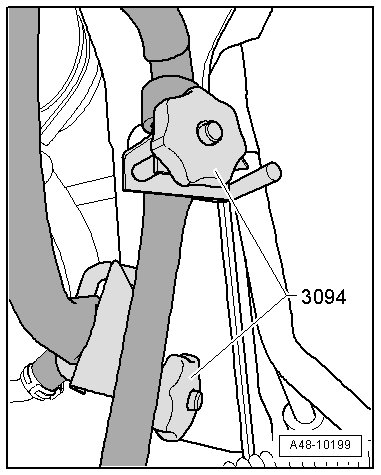

- Clamp the intake hose and the return line near the longitudinal member with hose clamps up to 25 mm dia. (3094).
- Lay cloths beneath and remove banjo bolt - 1 -.
- Open spring clip - 3 - and disconnect intake hose - 2 -.

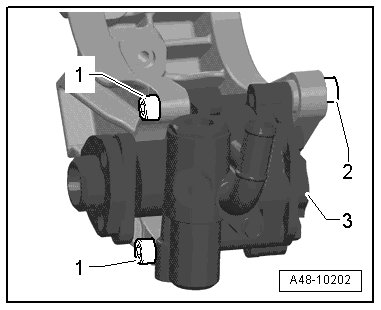

- Remove bolts - 1 -.
- Remove bolt - 2 - and remove power steering pump - 3 -.
Installing
Install in reverse order of removal. Note the following:
• Clean oiled places in engine compartment.
• Always replace seals.
• Before installing new pump on intake side, fill hydraulic oil and turn by hand until oil escapes on pressure side.
• Charge air system hose supports and hoses must be free of oil and grease before installation.
• Secure all hose connections with hose clamps appropriate to the model. Refer to the Parts Catalog.
- Turn the hub by hand until oil runs out of the pressure side.
- To assist attachment of vane pump - 1 -, drive threaded sleeve for bolt - 2 - back slightly in bracket.
- Insert vane pump - 3 -.
- First tighten front bolts - 1 -.
- Then tighten rear bolt - 2 -.
- Bolt belt pulley onto vane pump.
- Secure suction hose with new hose clamp. Note location of suction hose on power steering pump when doing so. Refer to => [ Power Steering Pump ] Service and Repair.
- Install new sealing rings onto banjo bolt.
- Tighten pressure line banjo bolt.
Tightening specifications, refer to => [ Power Steering Pump ] Service and Repair
- Clean oiled places in engine compartment.
- Install ribbed belt and check alignment of ribbed belt.
- On vehicles with air suspension, position vehicle on wheels. Refer to => [ Positioning Vehicle on Hoist and Wheels ] Positioning Vehicle on Hoist and Wheels.
- Top off hydraulic oil.
- Check power steering fluid level. Refer to => [ Power Steering, Checking Hydraulic Oil Level ] Power Steering, Checking Hydraulic Oil Level.
- Bleed the steering system. Refer to => [ Steering System, Bleeding after Reinstalling ] Service and Repair.
- Check the steering system for leaks. Refer to => [ Steering System, Checking for Leaks ] Steering System, Checking For Leaks.
