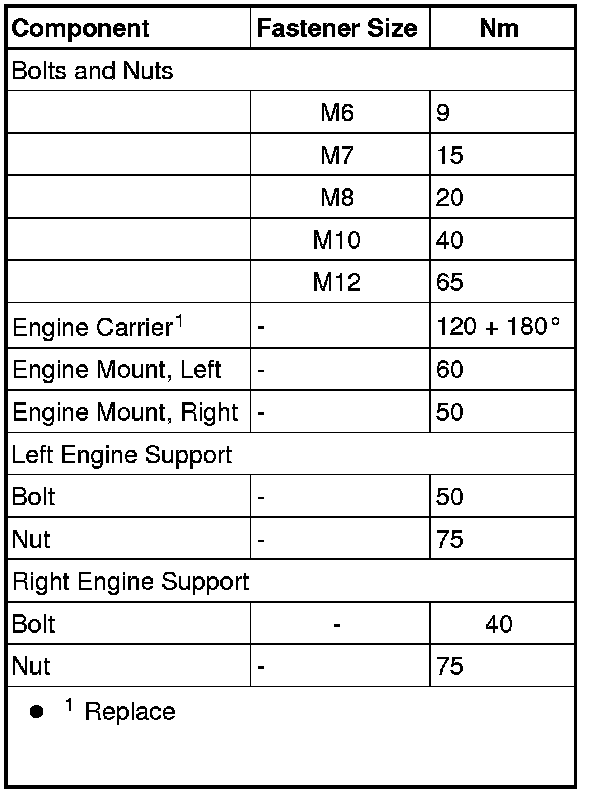

Fastener Tightening Specifications






Fastener Tightening Specifications






Ground Connection on the Right Longitudinal Member






- Tighten the nut - 2 - to 15 Nm.

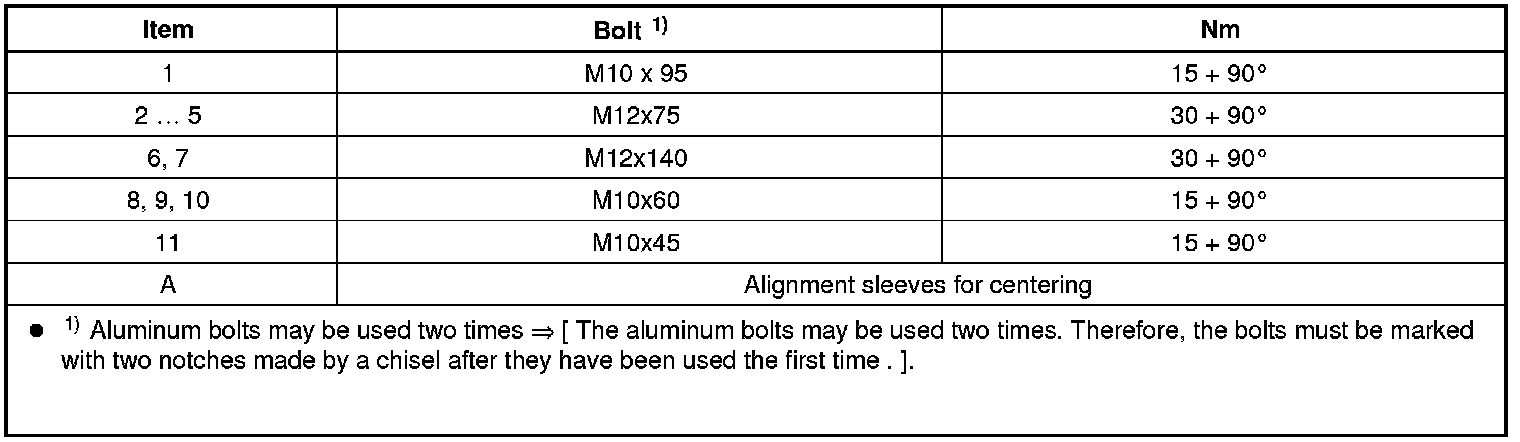

Engine to Transmission
