Cylinder Head, Valvetrain - Fastener Tightening Specifications

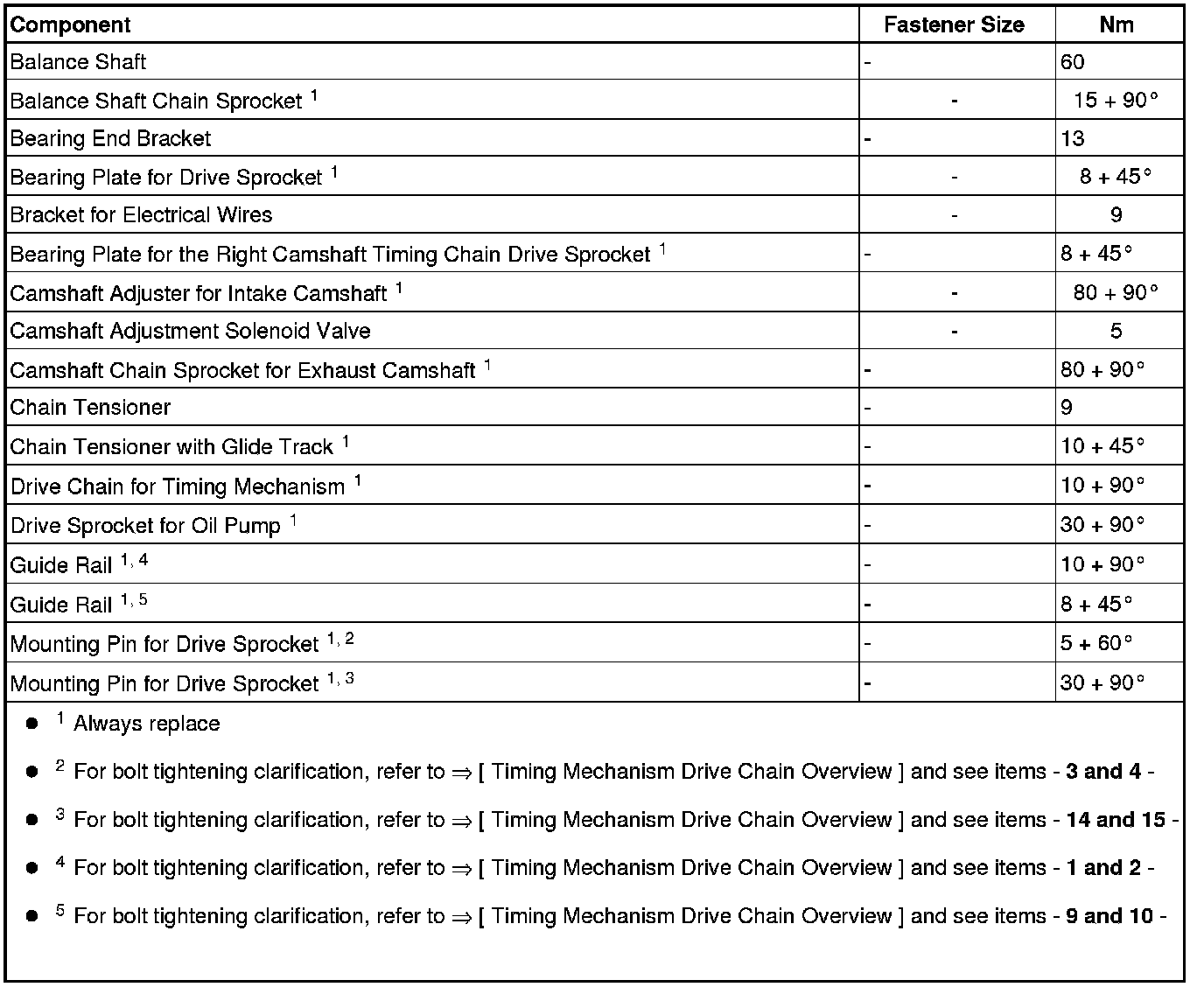

Fastener Tightening Specifications






Left Cylinder Head Cover, Tightening Specifications and Sequence






- Tighten the bolts to 9 Nm in the following sequence: - 1 to 12 -.

Right Cylinder Head Cover, Tightening Specifications and Sequence






- Tighten the bolts to 9 Nm in the following sequence: - 1 to 12 -.

Cylinder Head, Tightening Specifications and Sequence






• Replace bolts that are tightened to the specification.

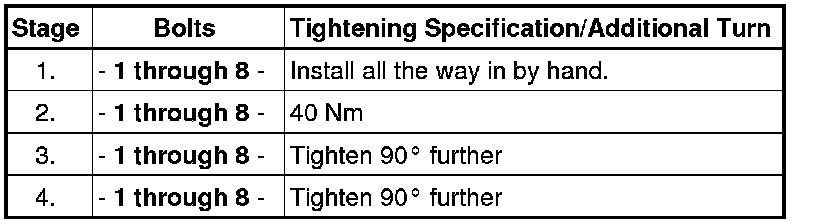

- Tighten the bolts in 4 steps in the sequence shown:






Oil Dipstick Guide Tube - Tightening Specifications






- Tighten the bolt - arrow - to 9 Nm.

Left Timing Chain Cover, Tightening Specifications and Sequence






• Replace bolts that are tightened to the specification.

• The brackets - arrows A, B - are connected with the left timing chain cover.

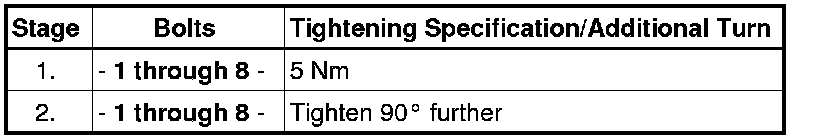

- Tighten the bolts in 2 steps in the sequence shown:






Right Timing Chain Cover, Tightening Specifications and Sequence






• Replace bolts that are tightened to the specification.

- Tighten the bolts in 2 steps in the sequence shown:






Lower Timing Chain Cover, Tightening Specifications and Sequence






• Replace bolts that are tightened to the specification.

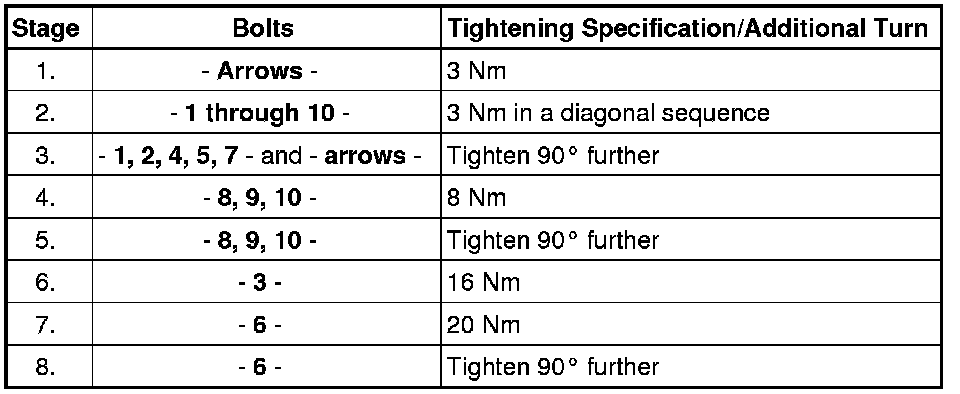

- Tighten bolts in 8 stages as follows:






Camshaft Guide Frame Tightening Specifications and Sequence






• The guide frame for the left cylinder head camshaft is shown in the illustration. The right cylinder head is identical.

• Replace bolts that are tightened to the specification.

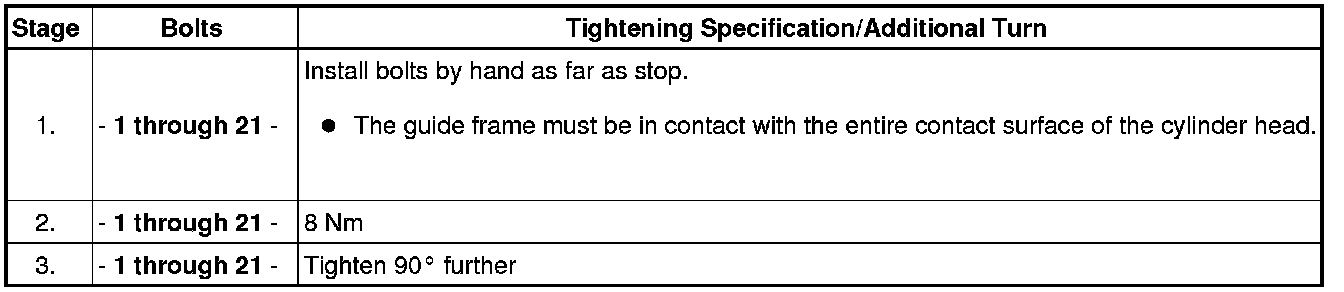

- Tighten the bolts in 3 steps in the sequence shown:
