System Specifications

Cylinder Head, Tightening Specifications and Sequence





Replace bolts that are tightened to the specification.

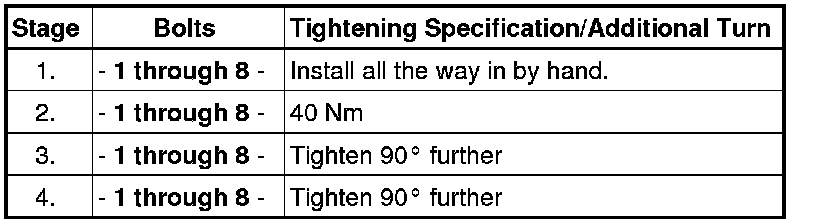

Tighten the bolts in 4 steps in the sequence shown:





Tighten the bolts - arrows - for the lower timing chain cover:





Tighten 3 Nm
Tighten 90° further

Checking Cylinder Head for Distortion





Check the cylinder head on several locations for distortion using a straight edge 500 mm (VAS 6075) and a feeler gauge.

Maximum warp 0.05 mm

Reworking Dimension, Cylinder Head





Resurfacing cylinder head (face grinding) is only permissible to minimum dimension - a -.

Minimum dimension - ma - = 139.20 mm

Camshaft Guide Frame Tightening Specifications and Sequence





The guide frame for the left cylinder head camshaft is shown in the illustration. The right cylinder head is identical.

Replace bolts that are tightened to the specification.

Tighten the bolts in 3 steps in the sequence shown:





Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Gear/Sprocket Specifications
