Crankshaft, Cylinder Block - Fastener Tightening Specifications

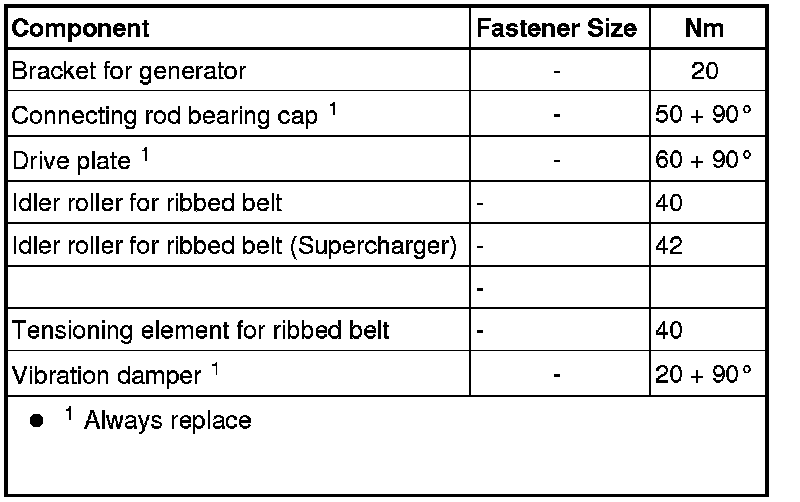

Fastener Tightening Specifications






Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence






- Tighten the bolts - arrows - in a diagonal sequence in stages to 9 Nm.

Top Dead Center (TDC) Marking Locking Bolt - Tightening Specification






• Replace the O-ring.

- Tighten the locking bolt - arrow - to 14 Nm.

Installing Guide Frame






• Replace bolts that are tightened to the specification.

- Insert the long bolts in the inner row of the guide frame.

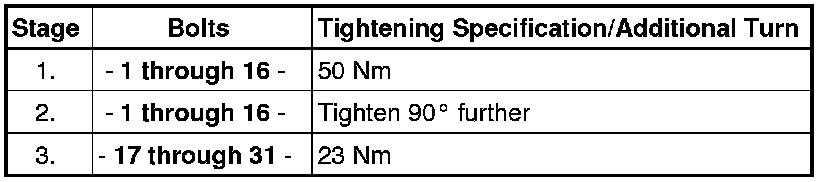

- Tighten the bolts in 3 steps in the sequence shown:






Oil Spray Jet for Piston Cooling






1. Insert the bolt with locking compound and tighten to 9 Nm; locking compound, refer to the Parts Catalog.

2. Oil spray jet with spray nozzle valve (opening pressure 2 to 2.4 bar)
