Gears, Hydraulic Controls

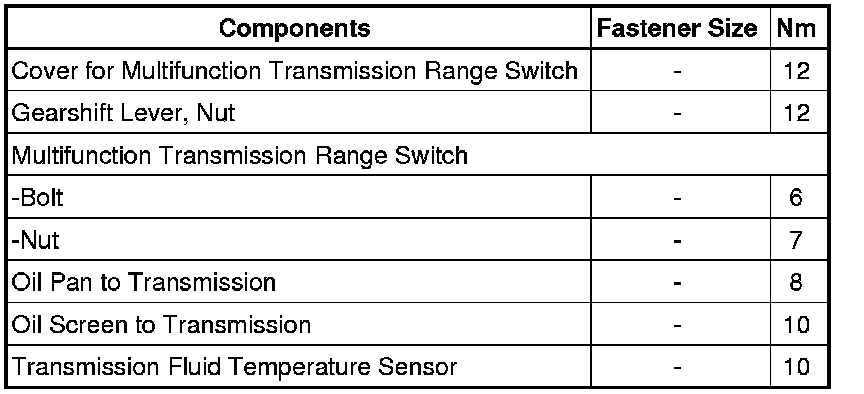

Fastener Tightening Specifications






Valve Body - Tightening Specification and Sequence






• Replace bolts that are tightened to the specification.

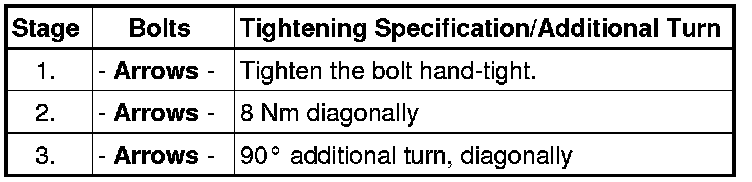

- Tighten bolts in 3 stages as follows:
