Outer 2nd Row Seat Belt Latch Securing Point

Outer 2nd Row Seat Belt Latch Securing Point

Left 2nd Row Seat Belt Latch






Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and General Information ] Restraint System Components, Safety Precautions and General Information.

- Remove the 2nd row seat padding of the seat bench. Refer to => [ Bench Seat Cushion ] Bench Seat Cushion.

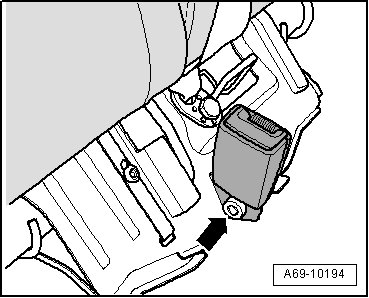

- Remove the screw - 1 - and remove the seat belt latch.

Install in reverse order of removal. Note the following:

• Screw - arrow - tightening specification: 55 Nm

Right 2nd Row Seat Belt Latch






Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and General Information ] Restraint System Components, Safety Precautions and General Information.

- Remove right 2nd row seat.

• Standard version, refer to => [ 2nd Row, 3-Seater Assembly Overview ] 2nd Row, 3-Seater Assembly Overview

• Comfort version, refer to => [ 2nd Row, 2-Seater Assembly Overview ] 2nd Row, 2-Seater Assembly Overview

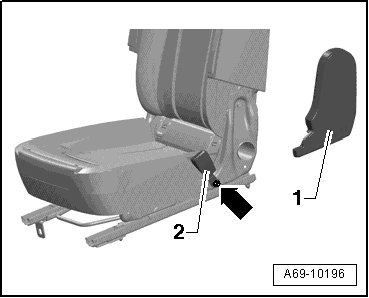

- Unclip cover cap - 1 - from seat frame.

- Remove the screw - arrow - and remove the seat belt latch - 2 -.

Install in reverse order of removal. Note the following:

• Screw - arrow - tightening specification: 55 Nm
