Seat Belts

Rear belt Guide, 2nd Row

Removing

- Remove the C-pillar trim from the body. Refer to => [ C-Pillar Trim Overview ] C-Pillar Trim Overview.

- Lay aside the C-pillar trim with the belt webbing threaded through.

Vehicles with air duct in C-pillar

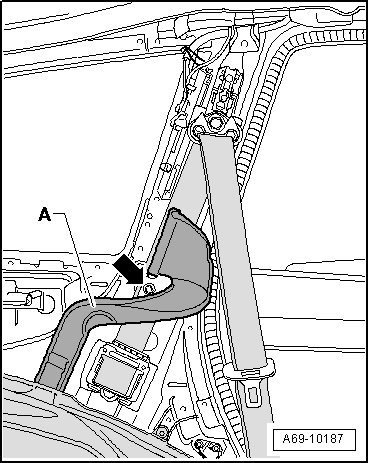

- Remove screw - arrow - at belt guide.

- Remove air duct - A -.

Procedure for all vehicles

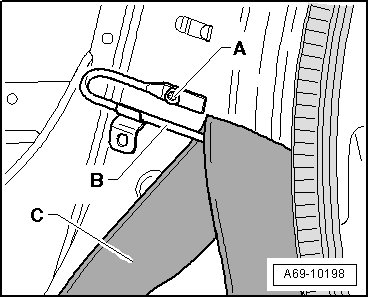

- Remove belt webbing - C - sideways from belt guide - B -.

- Remove screw - A - and remove belt guide.

Install in reverse order of removal.

• Screw - A - tightening specification: 5 Nm.
