Airbag Unit Harness Connector

Airbag Unit Harness Connector

• Depending on the market, use the new replacement part Airbag-Generation through roughly November 2011. Refer to Parts Catalog.

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and General Information ] Restraint System Components, Safety Precautions and General Information.

• Before handling airbag units (for example, when disconnecting the harness connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Removing






- Remove the driver airbag unit. Refer to => [ Driver Airbag Igniter N95 and Driver Airbag Igniter 2 N250 ] Driver Airbag Igniter N95 and Driver Airbag Igniter 2 N250.

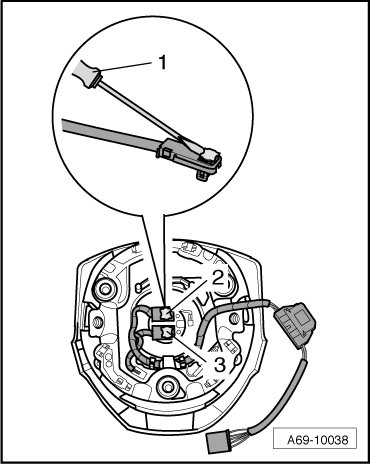

- Disconnect electrical connections - 2 - and - 3 - on airbag with screwdriver - 1 -.

Installation

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and General Information ] Restraint System Components, Safety Precautions and General Information.

• Before handling airbag units (for example, when disconnecting the harness connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Install in reverse order of removal. Note the following:

- Install the driver airbag unit => [ Installation ] Driver Airbag Igniter N95 and Driver Airbag Igniter 2 N250.
