Ignition System: Service and Repair

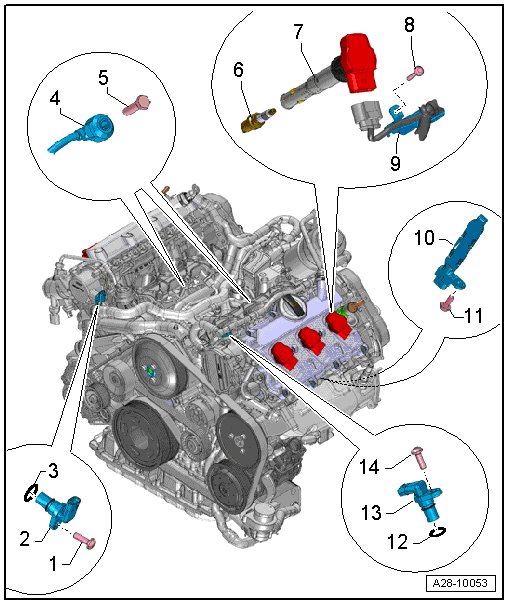

Ignition Overview






1 Bolt

• 9 Nm

2 Camshaft Position (CMP) Sensor (G40)

• Removing and installing, refer to => [ Camshaft Position (CMP) Sensor (G40)/Camshaft Position (CMP) Sensor 2 (G163) ] Service and Repair

3 O-ring

• Replace

4 Knock Sensor (KS)

• Cylinder bank 1 (right) Knock Sensor (KS) 1 (G61)

• Cylinder bank 2 (left) Knock Sensor (KS) 2 (G66)

• Removing and installing, refer to => [ Knock Sensors (KS) 1 (G61)/Knock Sensors (KS) 2 (G66) ] Service and Repair

5 Bolt

• 25 Nm

6 Spark Plug

7 Ignition Coil

• Removing and installing, refer to => [ Ignition Coils with Power Output Stages ] Service and Repair

8 Bolt

• 5 Nm

9 Wiring Harness

10 Bolt

• 9 Nm

11 Engine Speed (RPM) Sensor (G28)

• Removing and installing, refer to => [ Engine Speed (RPM) Sensor (G28) ] Service and Repair

12 O-ring

• Replace

13 Camshaft Position (CMP) Sensor 2 (G163)

• Removing and installing, refer to => [ Camshaft Position (CMP) Sensor (G40)/Camshaft Position (CMP) Sensor 2 (G163) ] Service and Repair

14 Bolt

• 9 Nm
