Turbocharger Coolant Line: Service and Repair

Compressor Coolant Pipes

Special tools, testers and auxiliary items required

• Hose Clamps Up to 25 mm Dia. (3094)

• Drip Tray for VAS 6100 (VAS 6208)

• Hose Clip Pliers (VAS 6362)

Removing






- Remove the front engine cover - 1 - upward.

- Remove the front noise insulation - 1 -..






Risk of scalding due to hot steam and hot coolant.

• The coolant system is under pressure when the engine is warm.

• Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure in the system.

- Open the coolant reservoir cap.

- Place the (VAS 6208) under the engine.






- Disconnect the coolant hoses with the (3094) and remove them from the left front coolant pipes on the supercharger by loosening the clamps - 1 -.

• Ignore - 2 and 3 -.

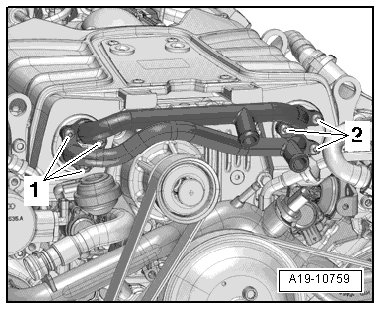

- Remove the bolts - 1 and 2 - and remove the coolant pipes on the supercharger.






Installing

Install in reverse order, paying attention to the following:

• For the correct tightening specifications, refer to => [ Coolant Pipes Overview ] Coolant Pipes Overview.

• Replace the seals

• Secure all hose connections with hose clamps of the same type as those equipped by the factory. Refer to the Parts Catalog.

- Fill the coolant. Refer to => [ Filling ] Service and Repair.

- Install the noise insulation..
