Turbocharger: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

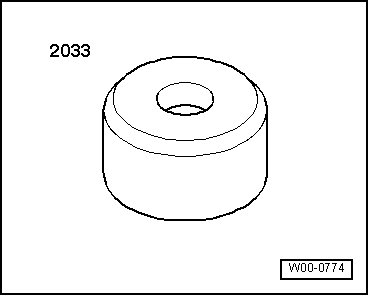

• Seal Installer (2033)

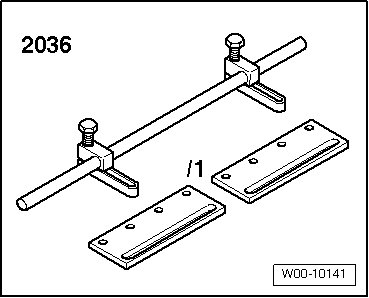

• Adjustable Rod (2036)






• Hose Clamps Up to 25 mm Dia. (3094)

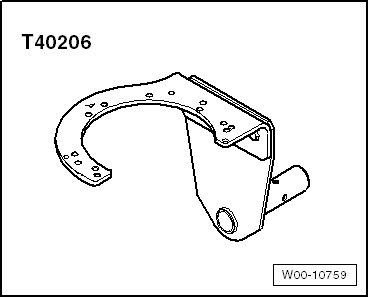

• Transmission Support (T40206) with (T40206/1) and Support (T40206/2)






• Testing Unit for Turbocharger (V.A.G 1687) with Adapter (V.A.G 1687/10) , Accessory Adapter f/ VAG 1687 (V.A.G 1687/13-1) , (V.A.G 1687/13-2) and (V.A.G 1687/13-3)






• Oil Collection and Extraction Device (V.A.G 1782)






• Engine and Transmission holder (VAS 6095)






• Drip Tray for VAS 6100 (VAS 6208)






• Engine Bung Set (VAS 6122)






• Hose Clip Pliers (VAS 6362)






• Not illustrated:

• Ultrasonic Measuring Device (V.A.G 1842)

• Tire Pry Lever (V.A.G 1942)
