Leak Detection Pump: Service and Repair

Leak Detection Pump (LDP) (V144)

Removing






- On a vehicle with air suspension, activate vehicle lift mode.

- Remove right rear wheel.

- Remove the right rear wheel housing liner.

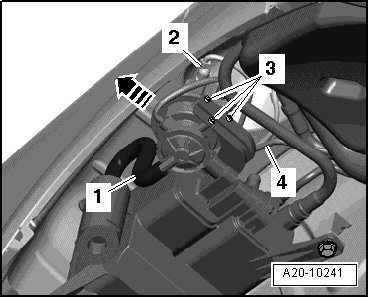

- Separate the electrical connector - 2 - with ignition turned off.

- Disconnect connecting hose - 1 -.

- Remove bolts - 3 - and remove diagnostic pump from Evaporative Emission (EVAP) canister in direction of - arrow -.

- Remove the vacuum line - 4 - from fuel system diagnostic pump.

Installing

• Tightening specification, refer to => [ EVAP System Overview ] Removal and Replacement.

Installation is carried out in the reverse order while noting the following:

- Install right rear wheel housing liner..

- On a vehicle with air suspension, deactivate vehicle lift mode.
