Oxygen Sensors Overview

Oxygen Sensors Overview

• Coat new oxygen sensors with an assembly paste.

• On a used oxygen sensor, only the thread may be coated with hot bolt paste; Hot Bolt Paste, refer to the Electronic Parts Catalog (ETKA).

• Assembly paste or hot bolt paste must not get into the slits on the oxygen sensor body.

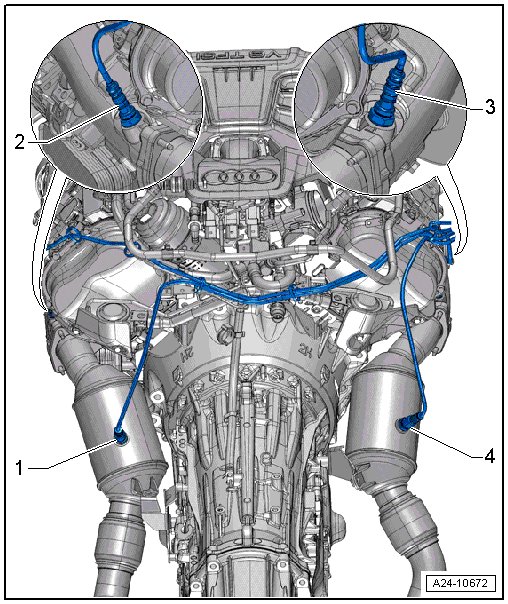

1 Oxygen Sensor (O2S) 2 after Catalytic Converter (G131)

• With heater for Oxygen Sensor (O2S) 2 after catalytic converter (Z30)

• Removing and installing, refer to => [ Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131) ] Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131)

• 55 Nm

2 Heated Oxygen Sensor (HO2S) 2 (G108)

• With Oxygen Sensor (O2S) 2 heater (Z28)

• Removing and installing, refer to => [ Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131) ] Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131)

• 55 Nm

3 Heated Oxygen Sensor (HO2S) (G39)

• With Oxygen Sensor (O2S) heater (Z19)

• Removing and installing, refer to => [ Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131) ] Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131)

• 55 Nm

4 Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) (G130)

• With heater for oxygen sensor 1 after catalytic converter (Z29)

• Removing and installing, refer to => [ Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131) ] Heated Oxygen Sensors (G39)/(G108)/(G130)/(G131)

• 55 Nm
