Fluid Filter - A/T: Service and Repair

Oil Screen

Removing






- Remove the ATF pan. Refer to => [ Oil Pan ] Service and Repair.

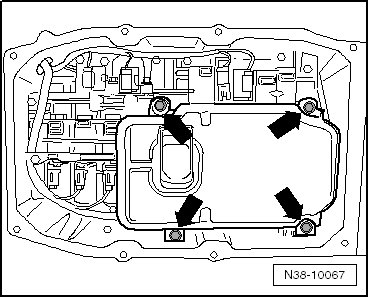

- Remove the bolts - arrows -.

- Remove the oil screen.

- Remove the oil strainer sealing ring from its seat in the valve body.

Installing






Danger of causing damage to the seal.

• First install the oil screen so that it is loose. The oil strainer centers itself noticeably in the valve body seat.

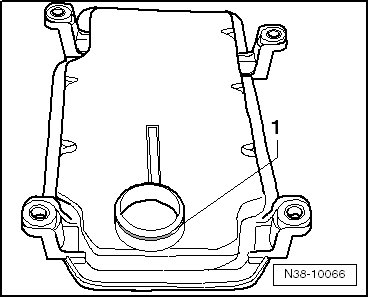

- Coat new sealing ring - 1 - with ATF and mount it on the suction collar.

- Place the ATF strainer on the valve body so that it is still loose but do not push in it yet.

- Turn the bolts - arrows - into the valve body approximately 3 turns, but not more.






- Center oil screen and press the oil screen - arrows - evenly on the corners all the way into the valve body and hold it in this position.

- Install the bolts all the way in by hand but do not tighten them.

Install in reverse order of removal. Note the following:

- Install the oil pan. Refer to => [ Oil Pan ] Service and Repair.

- Fill the ATF. Refer to => [ ATF, Filling ] ATF, Filling.

Tightening Specifications:
