Door Warning Lamp and Rear Entry Lamp

Door Warning Lamp and Rear Entry Lamp

Removing

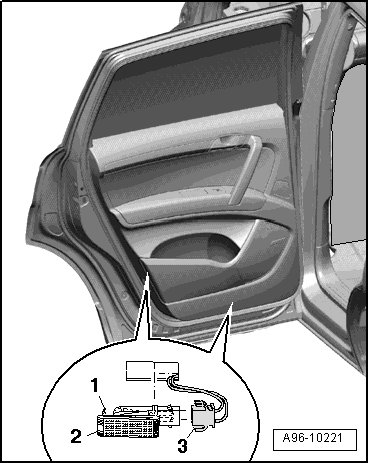

- Press the tab - 1 - in with a screwdriver and pry out the door warning lamp or footwell light - 2 -.

- Disconnect electrical connector - 3 -.

- Release retaining clips - arrows - and remove cover - 1 - over bulb.






- Remove bulb - 1 - (12V, 3 W) on back of door warning lamp/entry lamp from socket - 2 -.






Installing

Install in reverse order of removal, observing the following:

- Position cover on the door warning lamp.

- Insert the door warning lamp or entry lamp into the opening and engage it on the opposite side.
