Door Lock Reminder Light: Service and Repair

Central Locking -SAFE- Indicator Lamp (K133)

Removing






- Switch off ignition and remove ignition key.

- Remove front door trim..

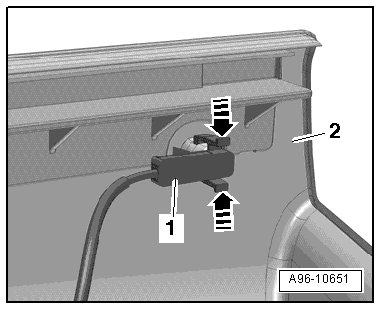

- Release the retaining clips - arrows -.

- Remove the central locking LED - 1 - down out of the door trim - 2 -.

Installing

Install in reverse order of removal, observing the following:

• The new central locking -SAFE- indicator lamp must be connected with the door trim wiring harness.

- Disconnect the electrical wire and connect it with the new electrical wire for the central locking -SAFE- indicator lamp.

- Slide the central locking LED in until it engages audibly.

- Install front door trim.
