Clock: Service and Repair

Radio Frequency Controlled Clock Receiver (J489)

Removing






- Remove rear bumper cover.

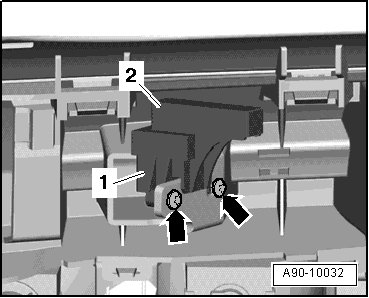

- Remove screws - arrows - and remove Radio Frequency Controlled Clock Receiver - item 2 - from rear bumper cover.

- Disconnect electrical connector - 1 -.

Installing

Install in reverse order of removal, observing the following:

- Install the cover on the rear bumper.

If the bumper cover was removed, the lane change assistance control module (J769) / (J770) must be calibrated again. Refer to => [ Lane Change Assistance, Preparing for Calibration ] Lane Change Assistance, Preparing For Calibration.

Tightening Specifications
