Cigarette Lighter (U1)

Cigarette Lighter (U1)

Special tools, testers and auxiliary items required

• Release Tool (T40148)

Removing






- Position selector lever in "N" position.

- Switch off ignition and remove ignition key.

- Unclip mounting frame for selector lever boot - 1 - from center console and lift it upward - arrows -.

- Fold selector lever boot upward.

- Release retaining spring - 2 - and remove Selector Lever Transmission Range Position Display Unit (Y26) - item 1 - upward.






- Disconnect the connector.

Vehicles Without CD Changer In Center Console Storage Compartment:






- Using a screwdriver - 2 -, pry center console storage compartment - 1 - out in - direction of arrow -.

- Reach through center console storage compartment opening and press installation frame - 1 - for Multimedia Control Head (E380) up - arrow -.






Vehicles With CD Changer In Center Console Storage Compartment:

- Reach through selector lever boot opening and press installation frame - 1 - for Multimedia Control Head (E380) up - arrow -.

All Vehicles

- Unplug connectors.

- Remove screws - arrows - and front ashtray housing - 2 -.






- Disconnect ashtray and cigarette lighter lighting electrical connectors - 1 -.

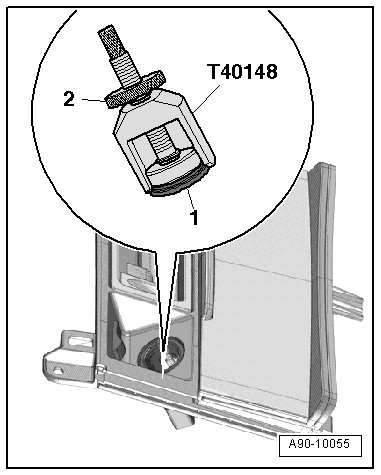

- Slide the (T40148) into the cigarette lighter - 1 - as far as the stop.






- Rotate the thumbwheel - 2 - on the (T40148) clockwise as far as the stop.

• The piston - 2 - is pulled upward and the release tabs - 1 - on the (T40148) spread - arrows -.






- Remove the cigarette lighter using the (T40148) from the Cigarette lighter illumination (L28).

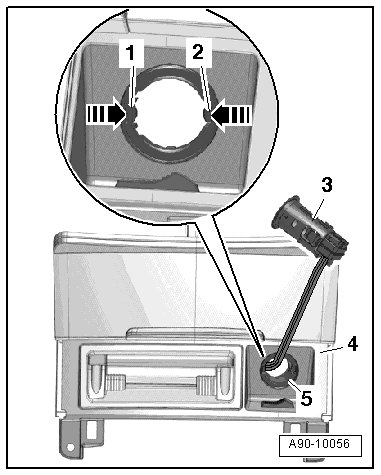

- Open the tabs - 1 - and - 2 - on the illumination ring - arrows -.






- Remove the cigarette lighter - 3 - and the illumination ring - 5 - from the front ashtray - 4 -.

Installing

Install in reverse order of removal, observing the following:

Risk of injury.

• After removing the (T40148) , check to see if the lighter retaining tabs are bent.

• If the retaining tabs are bend, bend them back so the lighter does not slide out.

- Remove the support - 1 - on the (T40148).






- Slide the piston down and hold it in place.

- Rotate the thumbwheel - 4 - on the (T40148) counterclockwise - arrow -. This loosens the release tabs - 2 - on the cigarette lighter (U1) - item 3 - so the (T40148) can be removed.

- Slide the cigarette lighter illumination ring into the mount until the retaining clips engage.

• The illumination ring can only be inserted in the mount in one position.
