Right Heater Core Covers - Heating & A/C Unit Installed

Right Heater Core Covers - Heating & A/C Unit Installed

Removing

- Remove lower right instrument panel trim..

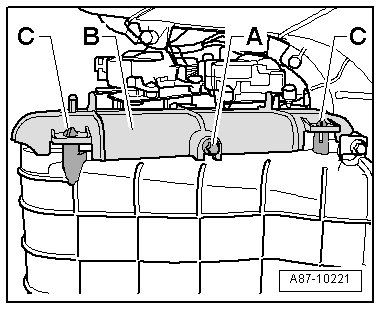

- Remove bolt - A -.






- Disengage cover - B - from mounts - C - and from wiring harness secured to upper side.

Installing

- Install the removed components again in reverse order.
