Left Heater Core Covers - Heating & A/C Unit Installed

Left Heater Core Covers - Heating & A/C Unit Installed

Removing

- Remove lower left instrument panel trim..

- Remove accelerator pedal module.

- Release relay carrier (with control modules) which is installed in left area next to heating & A/C unit and set it aside.

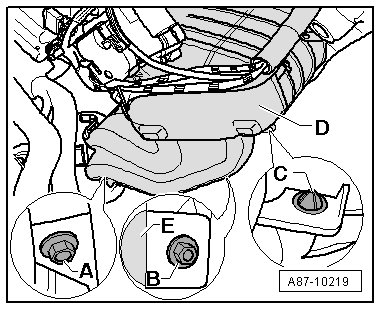

- Remove bolts - A - and - B -.






• If bolt - B - is not accessible due to unfavorable tolerances, carefully separate section - E - from cover, then press cover - D - carefully toward left from floor carpet to remove the bolt.

- Disengage cover - D - from the mounting points - C -, the catch at pass-through for coolant pipes and from the wiring harness secured to the upper side.

Installing

- Install the removed components again in reverse order.
