Heat Shield: Service and Repair

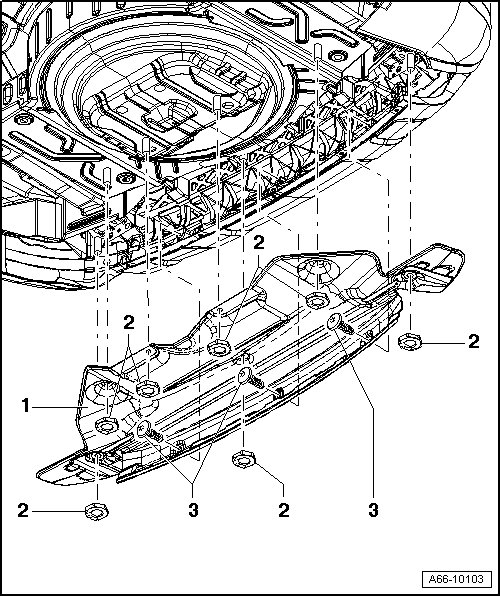

Muffler Heat Shield Overview






1 Heat Shield

2 Spring Nut

• 4.5 Nm

3 Bolt

• 2 Nm
