Engine Assembly

Special Tools






Special tools, testers and auxiliary items required

• Engine Sling (2024 A)

• Engine and Transmission Holder (VAS 6095) and Universal Mount (VAS 6095/1) and Bracket for V6 FSI Engine, Audi A6 (VAS 6095/1-5)

• Shop Crane -Load Cap=700-1200KG (VAS 6100)

• Lift Arm Ext./Workshop Hoist (VAS 6101)






Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Oil Collection and Extraction Device (V.A.G 1782)

• Step Ladder (VAS 5085)

• Engine Bung Set (VAS 6122)

• Scissor-Type Assembly Platform (VAS 6131 A) with Support Set (VAS 6131/10) Supplementary Set, Audi A8 (D3) (VAS 6131/11) , Supplementary Set, Audi Q7 (VAS 6131/13) and 3x Tapered Mounting Pin (VAS 6131/10-2)

• Drip Tray for VAS 6100 (VAS 6208)






Special tools, testers and auxiliary items required

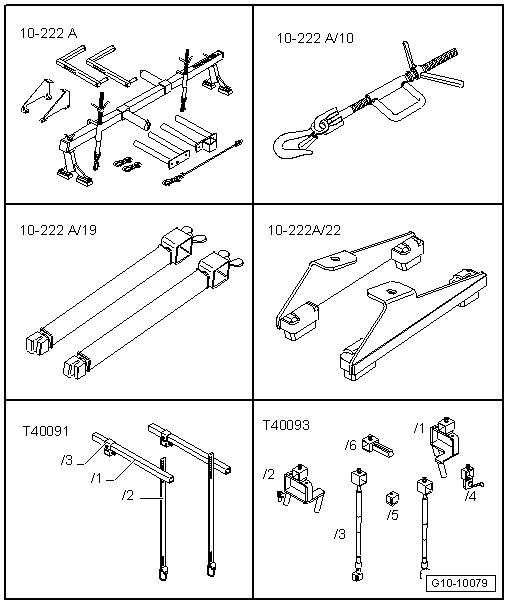

• Engine Support Bridge (10 - 222 A)

• Bracket with Spindle and Hook (10 - 222 A /10) , qty. 2

• Adapter (10 - 222 A /19)

• Adapter (10 - 222 A /22)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)

Special tools, testers and auxiliary items required

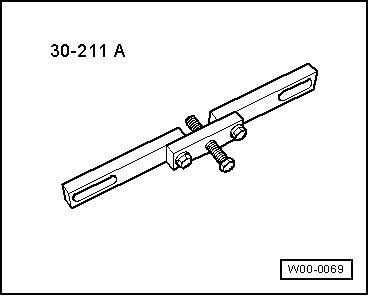

• Bracket (30 - 211 A)






• Locking Pin (T10060 A)

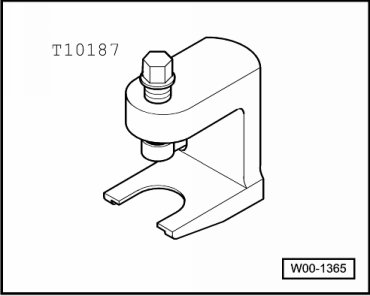

• Ball Joint Puller (T10187)






• Socket (T40058)






• Hose Clip Pliers (VAS 6362)






• Not illustrated:

• Joint Support (VAS 6131/13-7)

• Support Set (VAS 6131/10) , Supplementary Set Audi A6 (VAS 6131/12) , Supplementary Set, Audi Q7 (VAS 6131/13) and Transmission Support (VAS 6131/14)
