Cylinder Head, Valvetrain
Special Tools

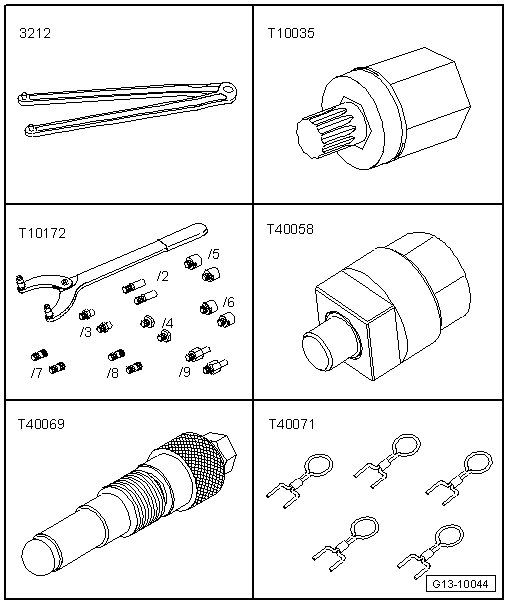

Special tools, testers and auxiliary items required
• Spanner Wrench (3212)
• Multipoint Socket (T10035)
• Counterhold Tool Touareg V10 (T10172)
• Socket (T40058)
• Locking Pin (T40069)
• Locking Pin (T40071)

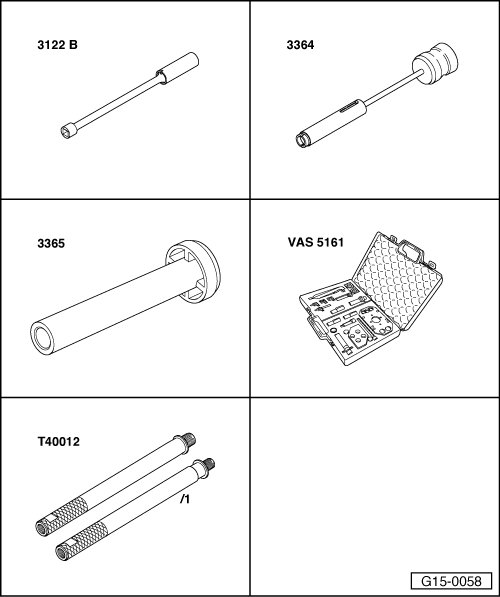

Special tools, testers and auxiliary items required
• Spark Plug Removal Tool (3122 B)
• Valve Seal Removal Tool (3364)
• Valve Stem Seal Driver (3365)
• Valve Cotters Asm/Dis-Asm Device (VAS 5161) with Guide Plate for FSI Engine (VAS 5161/19B)
• Adapter (T40012)
Special tools, testers and auxiliary items required
• Valve Seal Removal Tool (3364)
• Valve Stem Seal Driver (3365)
• Valve Cotters Asm/Dis-Asm Device (VAS 5161) with Guide Plate for FSI Engine (VAS 5161/19B)
• Engine and Transmission Holder (VAS 6095)
• Cylinder Head Tensioning Device (VAS 6419)
Special tools, testers and auxiliary items required
• Spark Plug Removal Tool (3122 B)
• Impact Puller (T10133/3) from Tool Set (T10133)

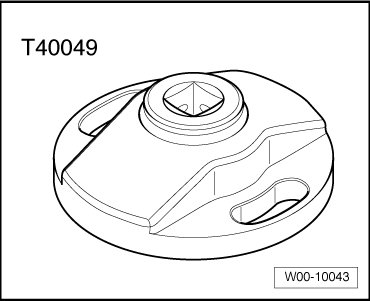

• Key (T40049)

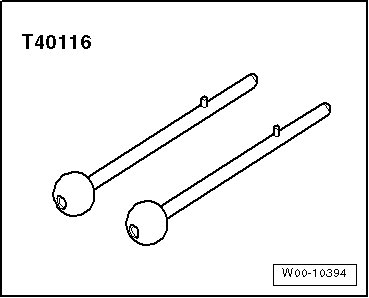

• Locating Pins (T40116)

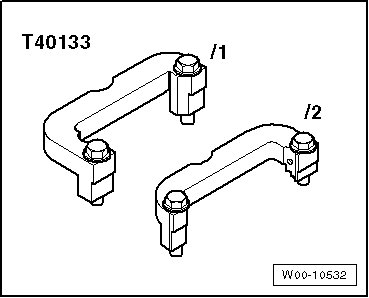

• Camshaft Clamp (T40133)
• Compression Tester (V.A.G 1763)
• Dial Gauge 0-10 mm (VAS 6079)

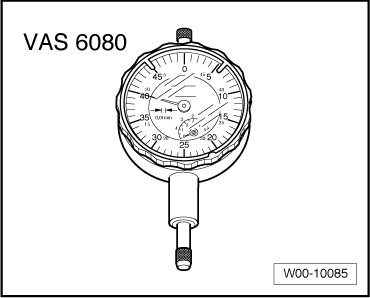

• Dial Gauge 0-3 mm (VAS 6080)
• Engine Bung Set (VAS 6122)
• Dial Gauge Holder (VW 387)
• Not illustrated:
• Polydrive Bit and Drive Socket (T10070)
• Straight Edge 500 mm (VAS 6075)
