Subframe Overview

Subframe Overview

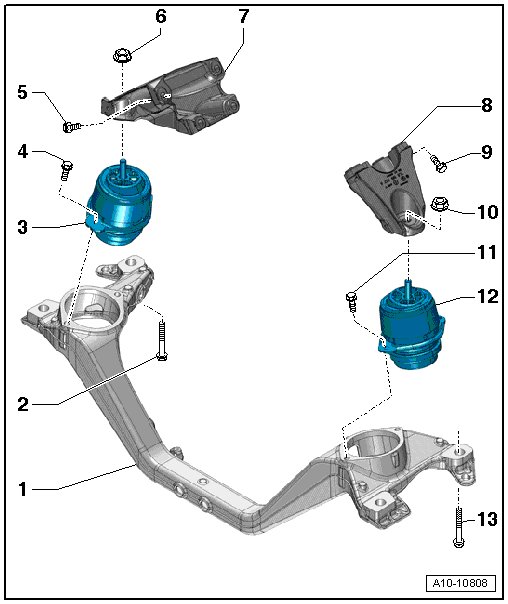

1 Engine Carrier

• Removing and installing, refer to => [ Engine Carrier ] Engine Carrier

2 Bolt

• 120 Nm plus an additional 180° turn

• Replace

3 Engine Mount, Right

• Removing and installing, refer to => [ Engine Mount ] Engine Mount

4 Bolt

• 50 Nm

5 Bolt

• 40 Nm

6 Nut

• 75 Nm

7 Right Engine Support

• Illustration does not correspond to version in vehicle

8 Left Engine Support

9 Bolt

• 50 Nm

10 Nut

• 75 Nm

11 Bolt

• 60 Nm

12 Engine Mount, Left

• Removing and installing, refer to => [ Engine Mount ] Engine Mount

13 Bolt

• 120 Nm plus an additional 180° turn

• Replace
