Oil Pan: Specifications

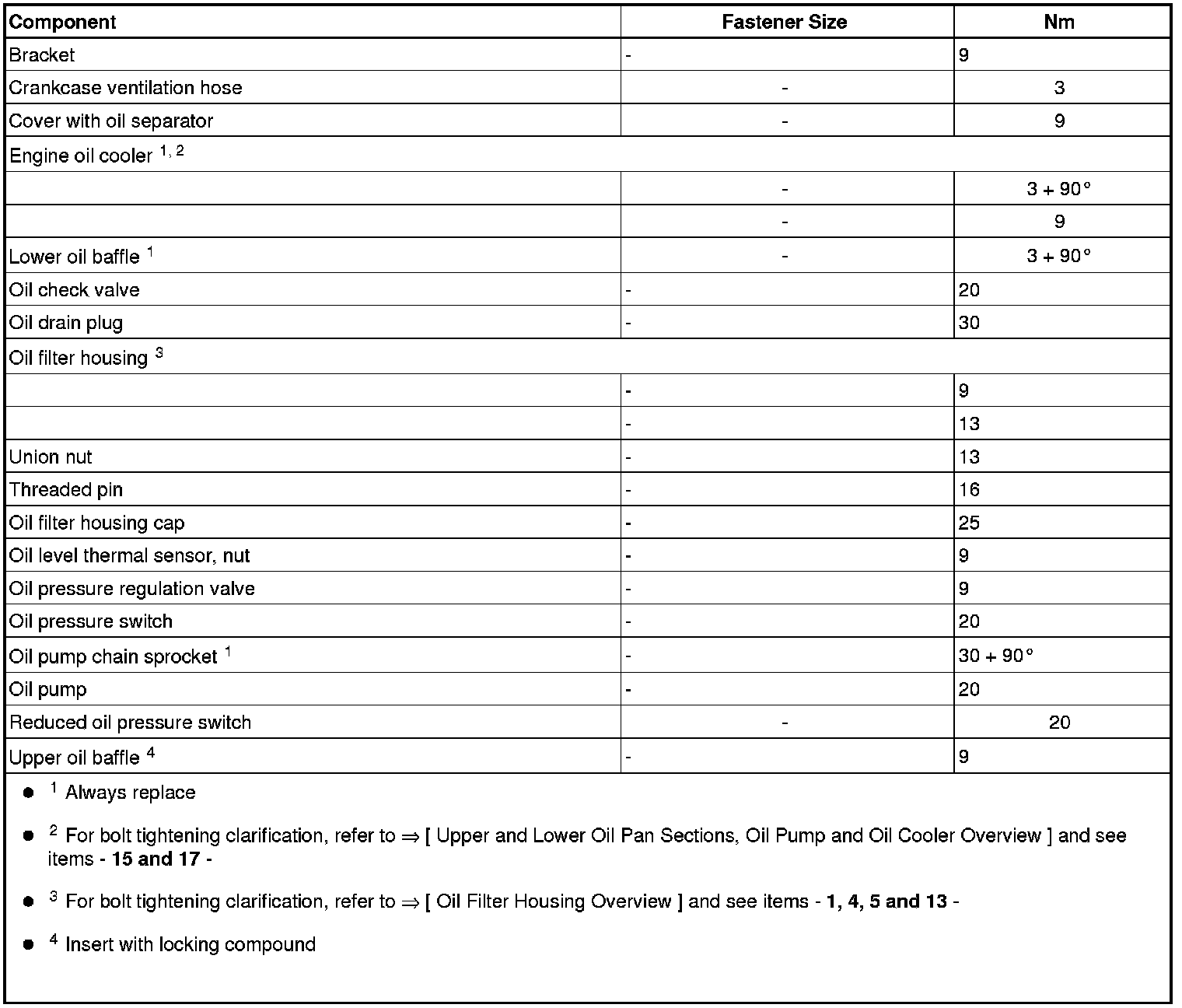

Fastener Tightening Specifications






Lower Oil Pan, Tightening Specifications and Sequence






• Replace bolts that are tightened to specification.

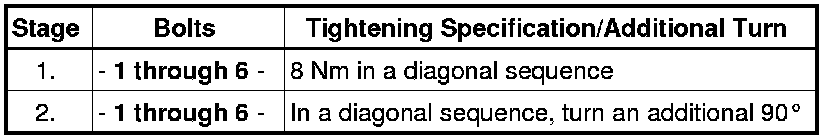

- Tighten bolts in 2 stages as follows:






Upper Oil Pan, Tightening Specifications and Sequence






• Replace bolts that are tightened to specification.

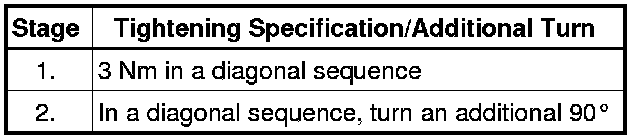

- Tighten bolts in 2 stages as follows:
