Radiator Overview

Radiator Overview

Risk of injury through fan turning on automatically.

• The radiator fan can come on even when the ignition is turned off, for example, caused by the heat still in the engine compartment.

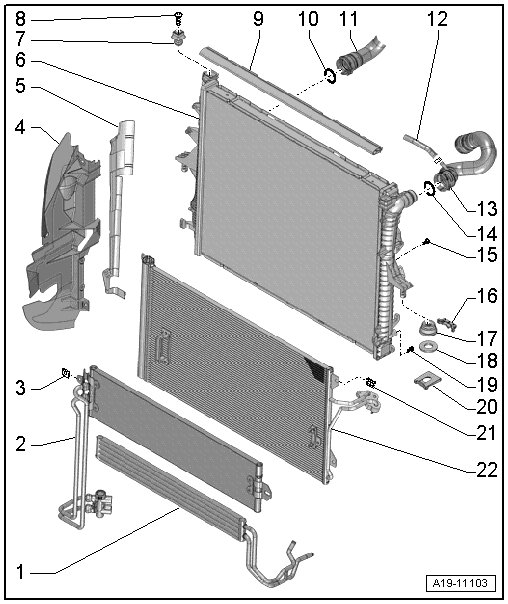

1 Hydraulic Oil Cooler

• For power steering

2 ATF Cooler

• For automatic transmission

3 Retaining Clip

• Make sure it is secure

4 Air Guide

5 Air Guide

6 Radiator

• Removing and installing, refer to => [ Radiator ] Radiator

• Change coolant after replacing

7 Grommet

8 Bolt

• 5.5 Nm

9 Sealing Strip

10 O-ring

• Replace

11 Coolant Hose

• Illustration does not correspond to version in vehicle

• Connect to the radiator

12 Coolant Hose

13 Coolant Hose

• Connect to the radiator

14 O-ring

• Replace

15 Bolt

• 8 Nm

16 Retainer

• For radiator

17 Rubber Buffer

18 Washer

19 Bolt

• 8 Nm

20 Retaining Clip

• Make sure it is secure

21 Retaining Clip

• Make sure it is secure

22 Condenser

• For air conditioning system

Connect the Coolant Hose to the Coupling





- Remove the old O-ring - 2 - in the coolant hose - 3 -.

- Coat the new O-ring with coolant and install it in the coolant hose.

- Press the coolant hose onto the connection - 1 - until it engages audibly.

- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
