Fan Shroud: Service and Repair

Fan Shroud

Removing

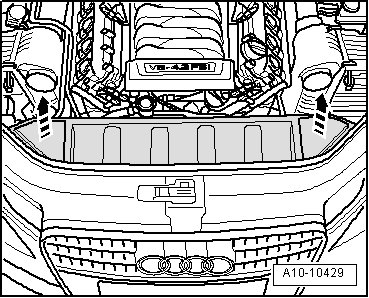

- Pull cover over radiator - arrows -.








Risk of injury through fan turning on automatically.

• Disconnect the connectors before working near the fan shroud.

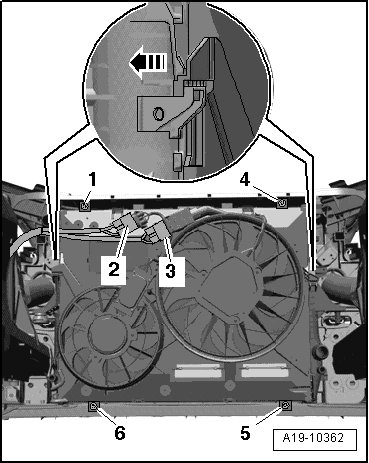

- Remove the bolts - 1, 4, 5 and 6 - from the fan shroud, if equipped.

- Disconnect the connectors - 2 and 3 - and free up the wires.

- Press locking tabs at left and right on fan shroud - arrow - and at the same time, lift fan shroud out of the engine compartment.

Installing

Install in reverse order of removal.

• For the correct tightening specifications, refer to => [ Fan Shroud and Coolant Fan Overview ] Fan Shroud and Coolant Fan Overview.
