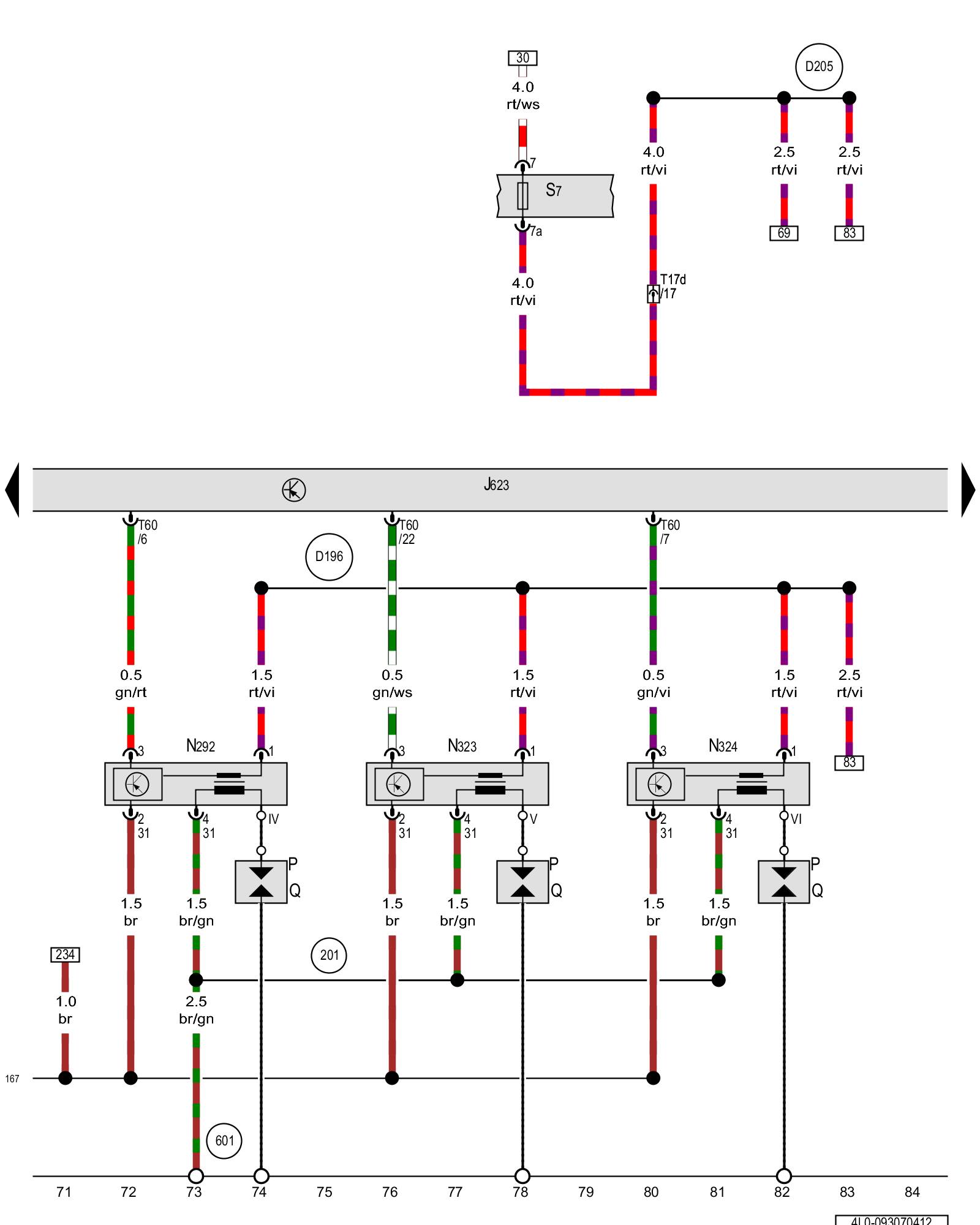

Diagram 93/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module, Ignition coil 4 with power output stage





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Overview Of Control Modules

N292 - Ignition coil 4 with power output stage Locations

N323 - Ignition coil 5 with power output stage Locations

N324 - Ignition coil 6 with power output stage Locations

P - Spark plug connectors

Q - Spark plugs

S7 - Fuse 7 (on fuse panel)

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T60 - 60-pin connector Locations

(167) - Ground connection 4 (in engine compartment wiring harness)

(201) - Ground connection 5 (in engine compartment wiring harness)

(601) - Ground connection on cylinder head, left

(D196) - Connection 2 (87a) (in engine wiring harness)

(D205) - Connection 3 (87a) (in engine wiring harness)
