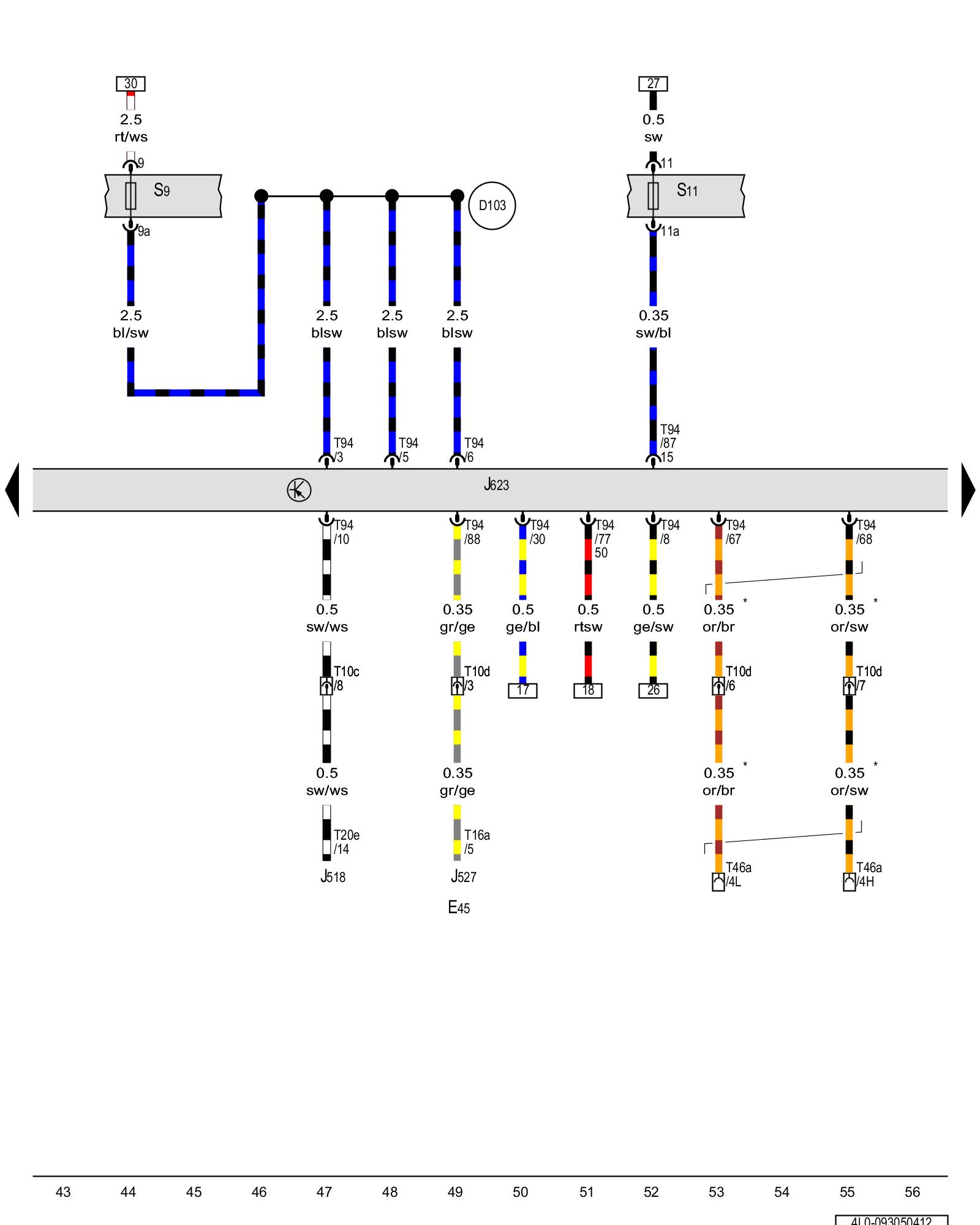

Diagram 93/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E45 - Cruise control switch

J518 - Access/start authorization control module Overview Of Control Modules Access/Start Authorization System Component Overview

J527 - Steering column electronics control module Locations

J623 - Engine control module Overview Of Control Modules

S9 - Fuse 9 (on fuse panel)

S11 - Fuse 11 (on fuse panel)

T10c - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T10d - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T16a - 16-pin connector

T20e - 20-pin connector Locations

T46a - 46-pin connector, black Overview of Connector Stations

T94 - 94-pin connector Locations

(D103) - Connection (3) (in engine compartment wiring harness)

* - Data bus wire (CAN bus)

Previous Diagram 93/4 (Tracks 29-42)

Next Diagram 93/6 (Tracks 57-70)
