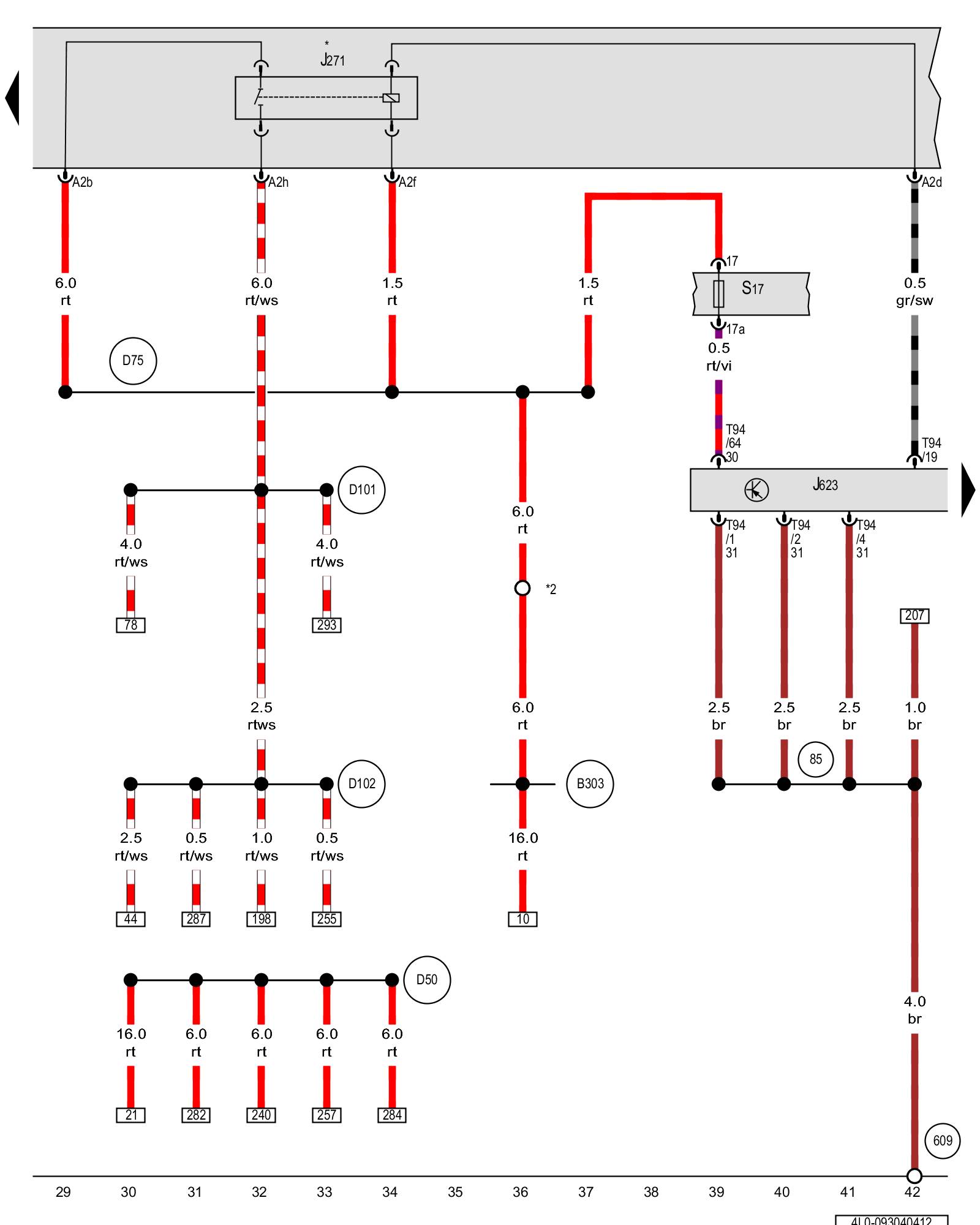

Diagram 93/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic engine control module power supply relay, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic engine control module power supply relay Overview Of Relay

J623 - Engine control module Overview Of Control Modules

S17 - Fuse 17 (on fuse panel)

T94 - 94-pin connector Locations

(85) - Ground connection 1 (in engine compartment wiring harness)

(609) - Ground connection in plenum chamber, right Locations

(B303) - Positive connection 7 (30) (in main wiring harness)

(D50) - Positive connection (30) (in engine compartment wiring harness)

(D75) - Positive connection 2 (30) (in engine compartment wiring harness)

(D101) - Connection (1) (in engine compartment wiring harness)

(D102) - Connection (2) (in engine compartment wiring harness)

* - Relay and fuse carrier in the plenum chamber E-box

*2 - Threaded connection in the plenum chamber E-box

Previous Diagram 93/3 (Tracks 15-28)

Next Diagram 93/5 (Tracks 43-56)
