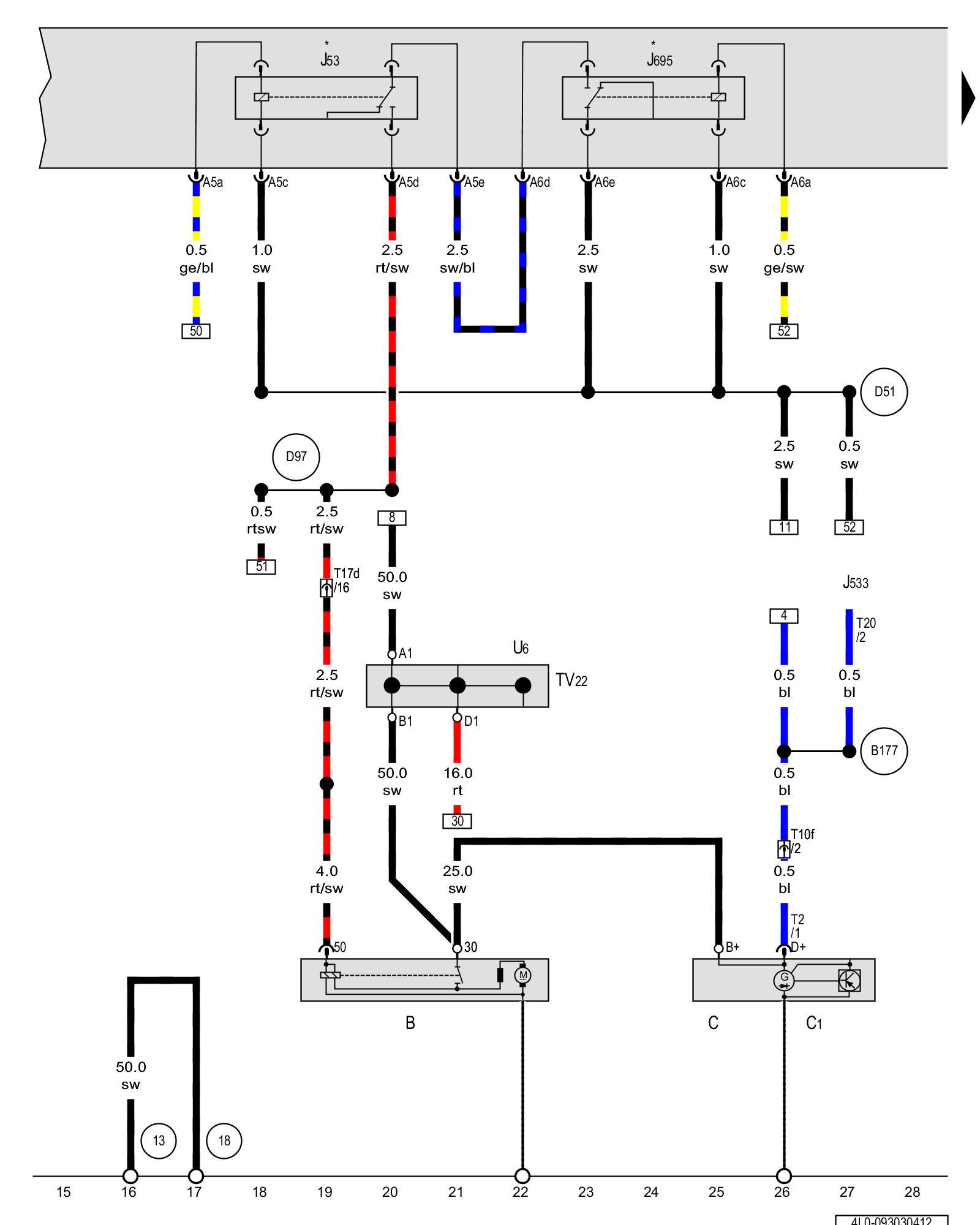

Diagram 93/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Starter, Generator, Starter relay, Relay 2 for starter, Battery jump start terminal





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

C - Generator

C1 - Voltage regulator

J53 - Starter relay Overview Of Relay

J533 - Data bus on board diagnostic interface Overview Of Control Modules

J695 - Relay 2 for starter Overview Of Relay

T2 - Double connector

T10f - 10-pin connector, Left plenum chamber E-box connector station

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T20 - 20-pin connector

TV22 - Terminal 30 wire junction 2

U6 - Battery jump start terminal

(13) - Ground connection in engine compartment, right

(18) - Ground connection on engine block

(B177) - Connection (61) (in interior wiring harness)

(D51) - Positive connection 1 (15) (in engine compartment wiring harness)

(D97) - Connection (50) (in right engine compartment wiring harness)

* - Relay and fuse carrier in the plenum chamber E-box
