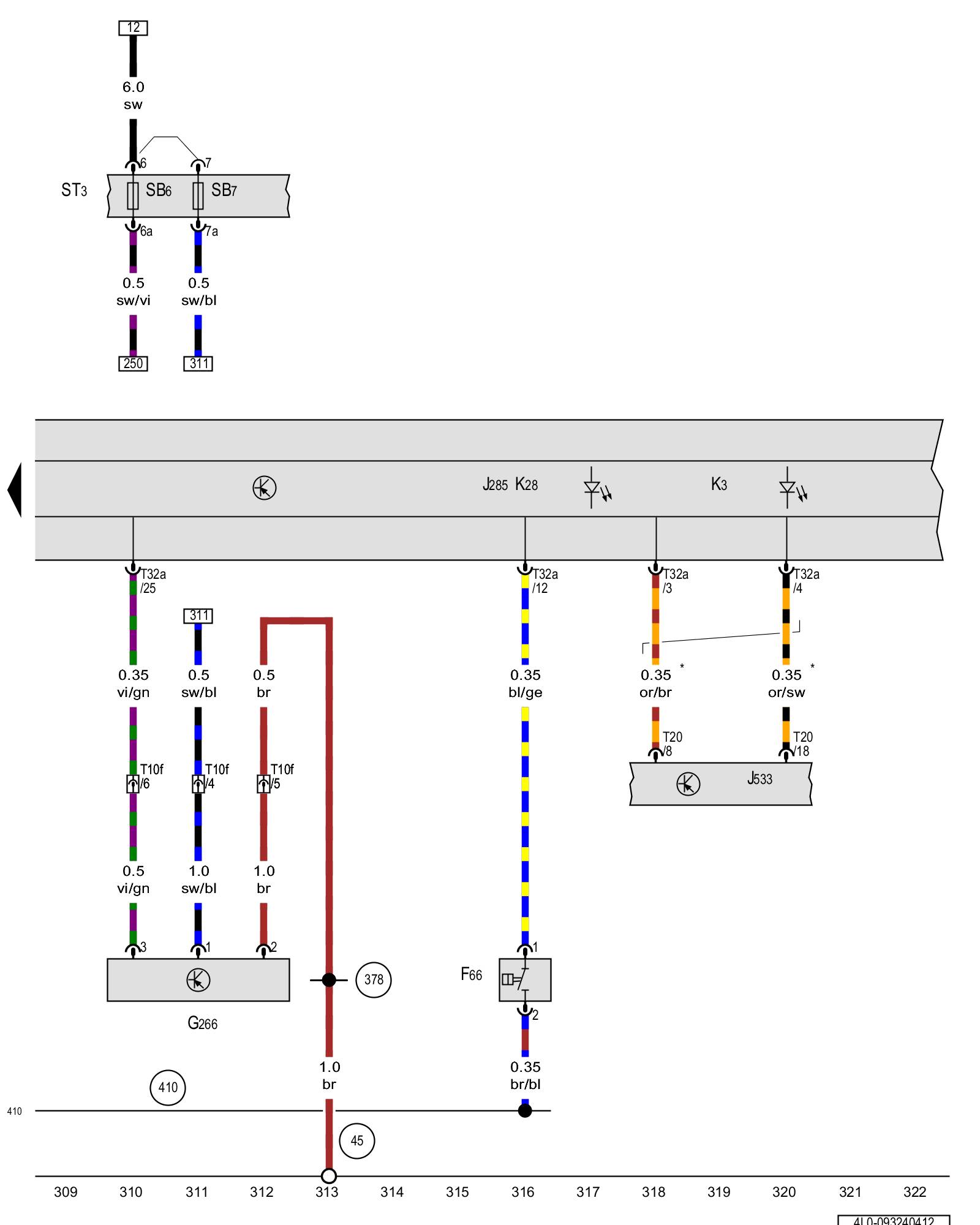

Diagram 93/24 (Tracks 309-322)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine coolant level warning switch, Instrument cluster control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F66 - Engine coolant level warning switch

G266 - Oil level thermal sensor Locations

J285 - Instrument cluster control module Overview Of Control Modules

J533 - Data bus on board diagnostic interface Overview Of Control Modules

K3 - Oil pressure indicator lamp

K28 - Engine coolant level/temperature indicator lamp

ST3 - Fuse panel 3

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB7 - Fuse 7 (on fuse panel B) Overview Of Fuses

T10f - 10-pin connector, Left plenum chamber E-box connector station

T20 - 20-pin connector

T32a - 32-pin connector Locations

(45) - Ground connection behind instrument panel, center Locations

(378) - Ground connection 13 (in main wiring harness)

(410) - Sensor ground connection 1 (in main wiring harness)

* - Data bus wire (CAN bus)
