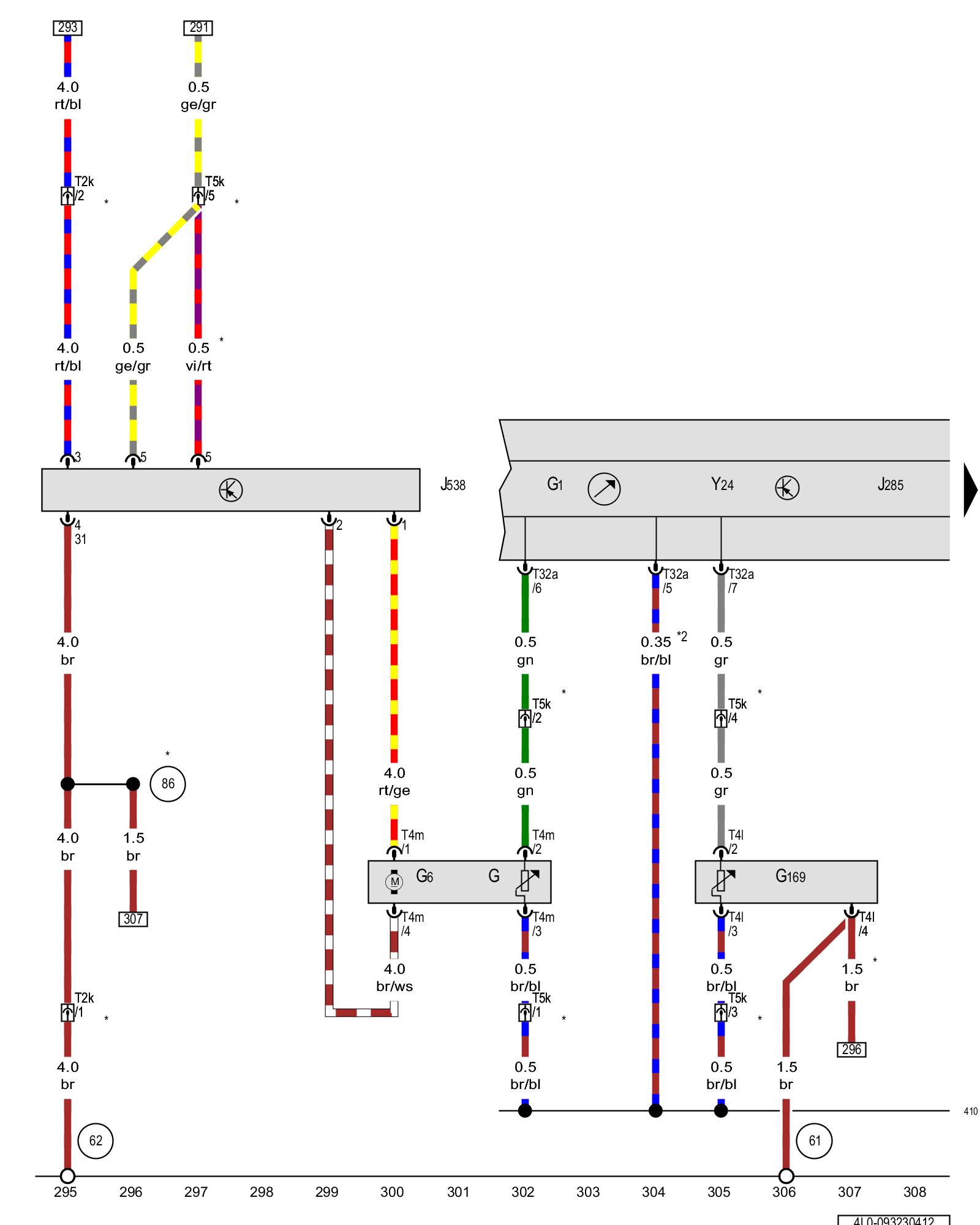

Diagram 93/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Transfer fuel pump, Fuel level sensor 2, Instrument cluster control module, Fuel pump control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel level sensor Locations

G1 - Fuel gauge

G6 - Transfer fuel pump Locations

G169 - Fuel level sensor 2 Locations

J285 - Instrument cluster control module Overview Of Control Modules

J538 - Fuel pump control module, on the fuel tank Overview Of Control Modules Locations

T2k - Double connector, on the left rear of the vehicle floor

T4l - 4-pin connector

T4m - 4-pin connector

T5k - 5-pin connector, on the left rear of the vehicle floor

T32a - 32-pin connector Locations

Y24 - Display unit in instrument cluster

(61) - Ground connection on left C-pillar Locations

(62) - Ground connection on right C-pillar

(86) - Ground connection 1 (in rear wiring harness)

(410) - Sensor ground connection 1 (in main wiring harness)

* - Only for vehicles with tank prewiring

*2 - Sensor ground output
