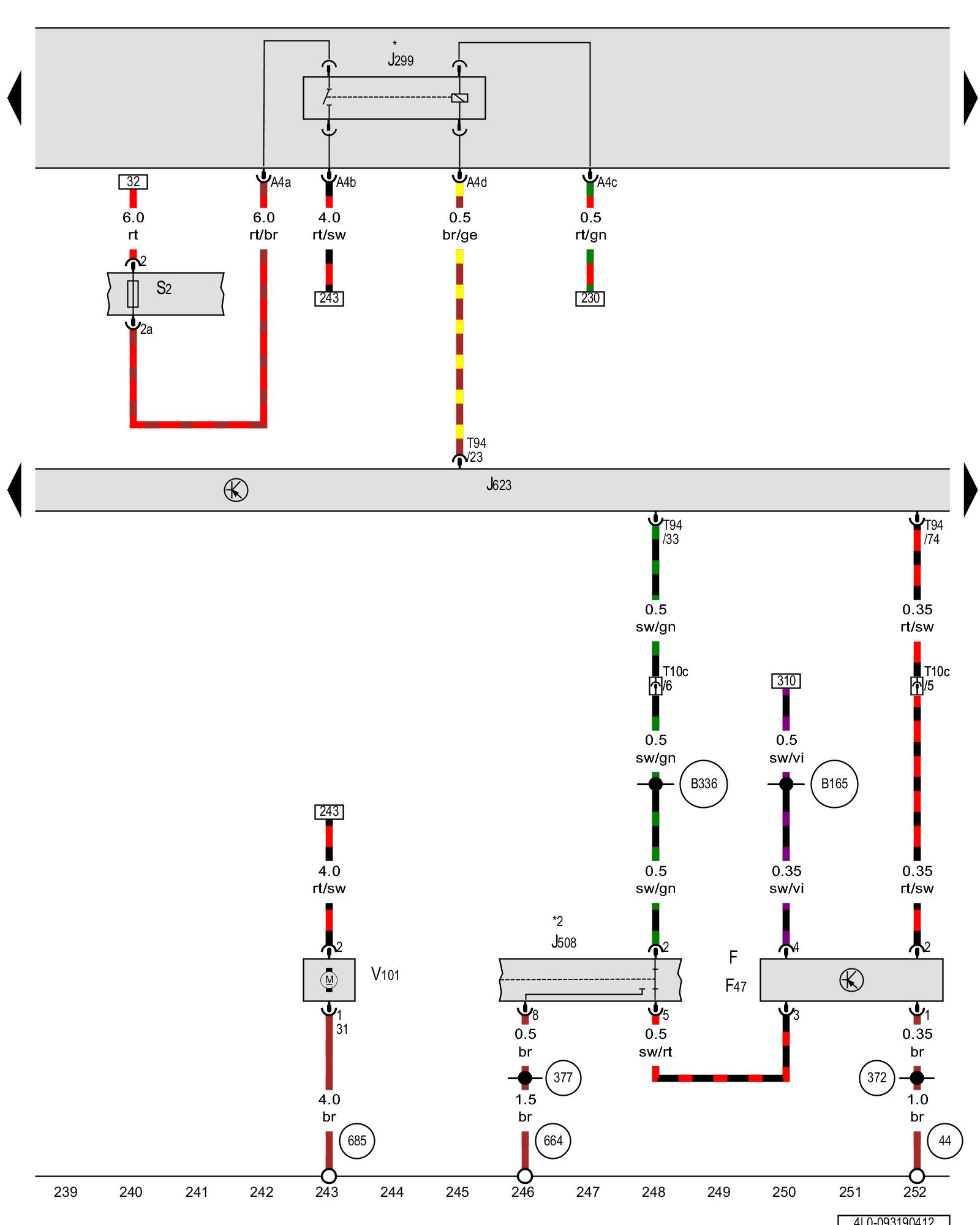

Diagram 93/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake lamp switch, Brake pedal switch, Secondary air injection pump relay, Brake lamp disable relay, Engine control module, Secondary air injection pump motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations

F47 - Brake pedal switch Locations

J299 - Secondary air injection pump relay Overview Of Relay

J508 - Brake lamp disable relay Overview Of Relay

J623 - Engine control module Overview Of Control Modules

S2 - Fuse 2 (on fuse panel)

T10c - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T94 - 94-pin connector Locations

V101 - Secondary air injection pump motor Locations

(44) - Ground connection on A-pillar, lower left Locations

(372) - Ground connection 7 (in main wiring harness)

(377) - Ground connection 12 (in main wiring harness)

(664) - Ground connection behind instrument panel, left Locations

(685) - Ground connection 1 on right front longitudinal member Locations

(B165) - Positive connection 2 (15) (in interior wiring harness)

(B336) - Connection 2 (54) (in main wiring harness)

* - Relay and fuse carrier in the plenum chamber E-box

*2 - Relay and fuse carrier in the instrument panel, center
