Diagram 93/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

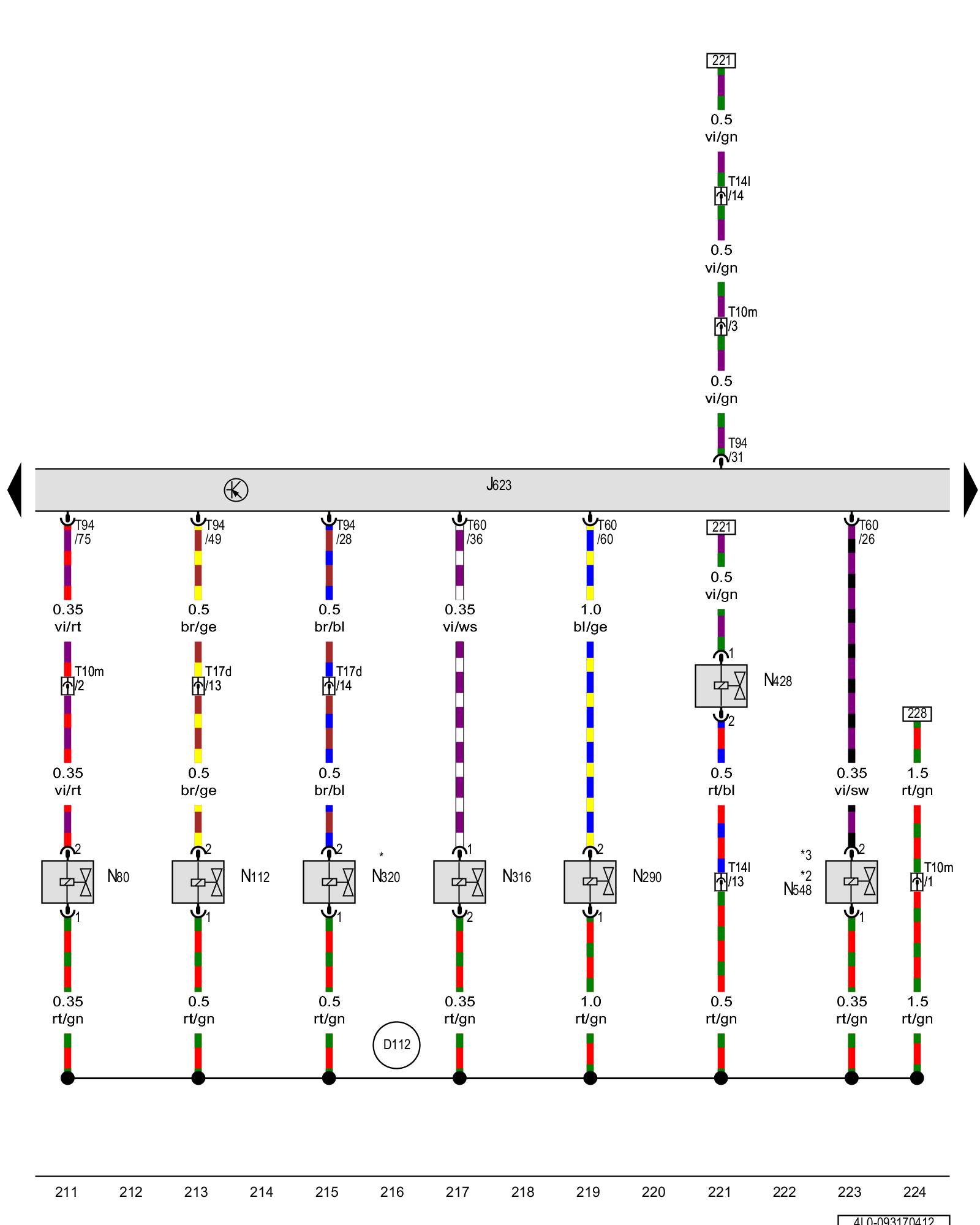

Engine control module, EVAP canister purge regulator valve 1, Secondary air injection solenoid valve, Intake manifold runner control valve, Secondary air injection solenoid valve 2, Oil pressure regulation valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Overview Of Control Modules

N80 - EVAP canister purge regulator valve 1 Locations

N112 - Secondary air injection solenoid valve Locations

N290 - Fuel metering valve Locations

N316 - Intake manifold runner control valve Locations

N320 - Secondary air injection solenoid valve 2 Locations

N428 - Oil pressure regulation valve Locations

N548 - Crankcase ventilation shut-off valve

T10m - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T14l - 14-pin connector, in the engine compartment, left

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

(D112) - Connection (10) (in engine compartment wiring harness)

* - Omitted as a running change

*2 - USA only

*3 - from June 2012

Previous Diagram 93/16 (Tracks 197-210)

Next Diagram 93/18 (Tracks 225-238)
