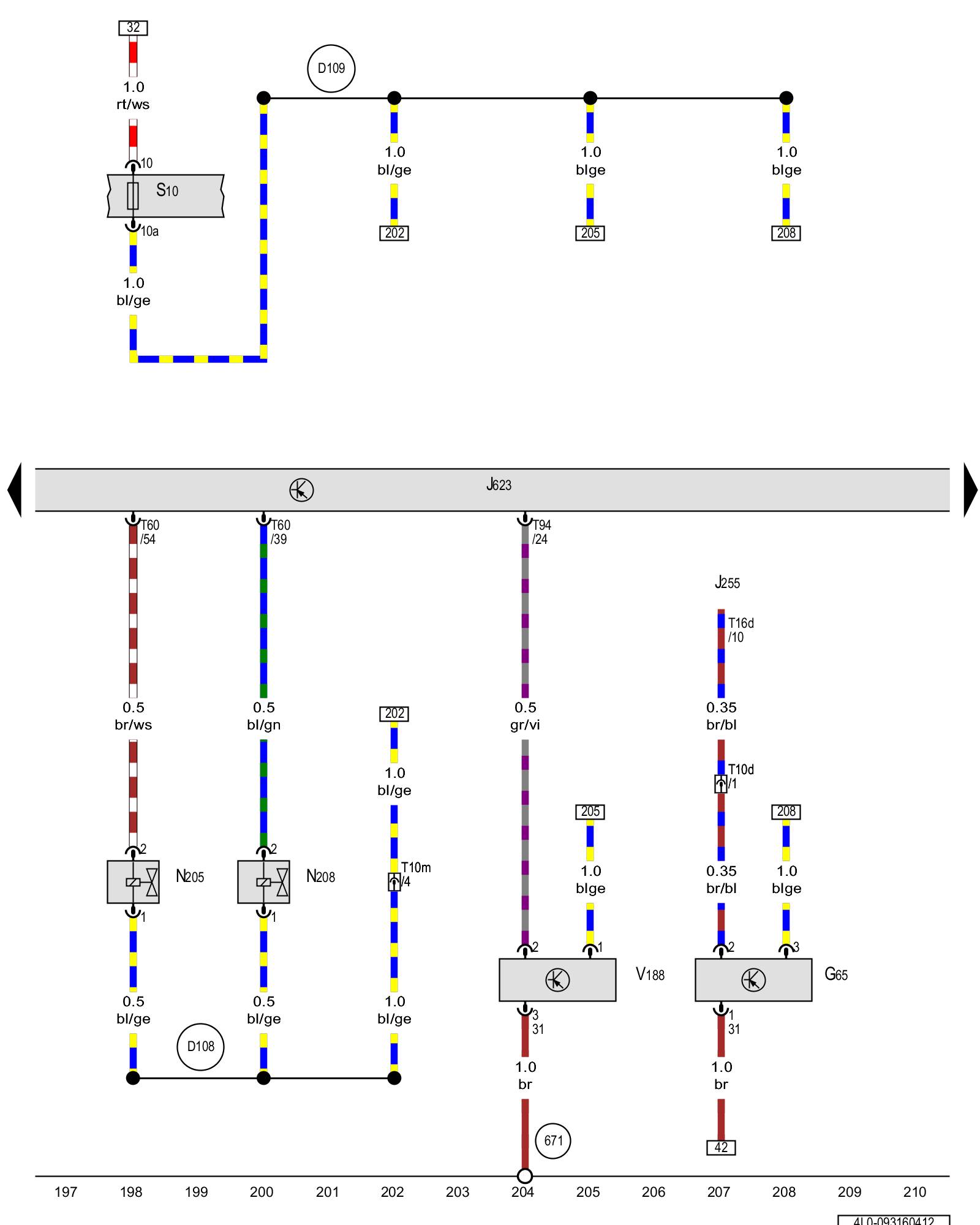

Diagram 93/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


High pressure sensor, Engine control module, Camshaft adjustment valve 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G65 - High pressure sensor Components Outside Pass Compartment

J255 - Climatronic control module Overview Of Control Modules

J623 - Engine control module Overview Of Control Modules

N205 - Camshaft adjustment valve 1 Locations

N208 - Camshaft adjustment valve 2 Locations

S10 - Fuse 10 (on fuse panel)

T10d - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T10m - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T16d - 16-pin connector Climatronic Control Module -J255- , A/C Basic

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

V188 - Charge air cooling pump Locations

(671) - Ground connection 1 on left front longitudinal member Locations

(D108) - Connection (6) (in engine compartment wiring harness)

(D109) - Connection (7) (in engine compartment wiring harness)
