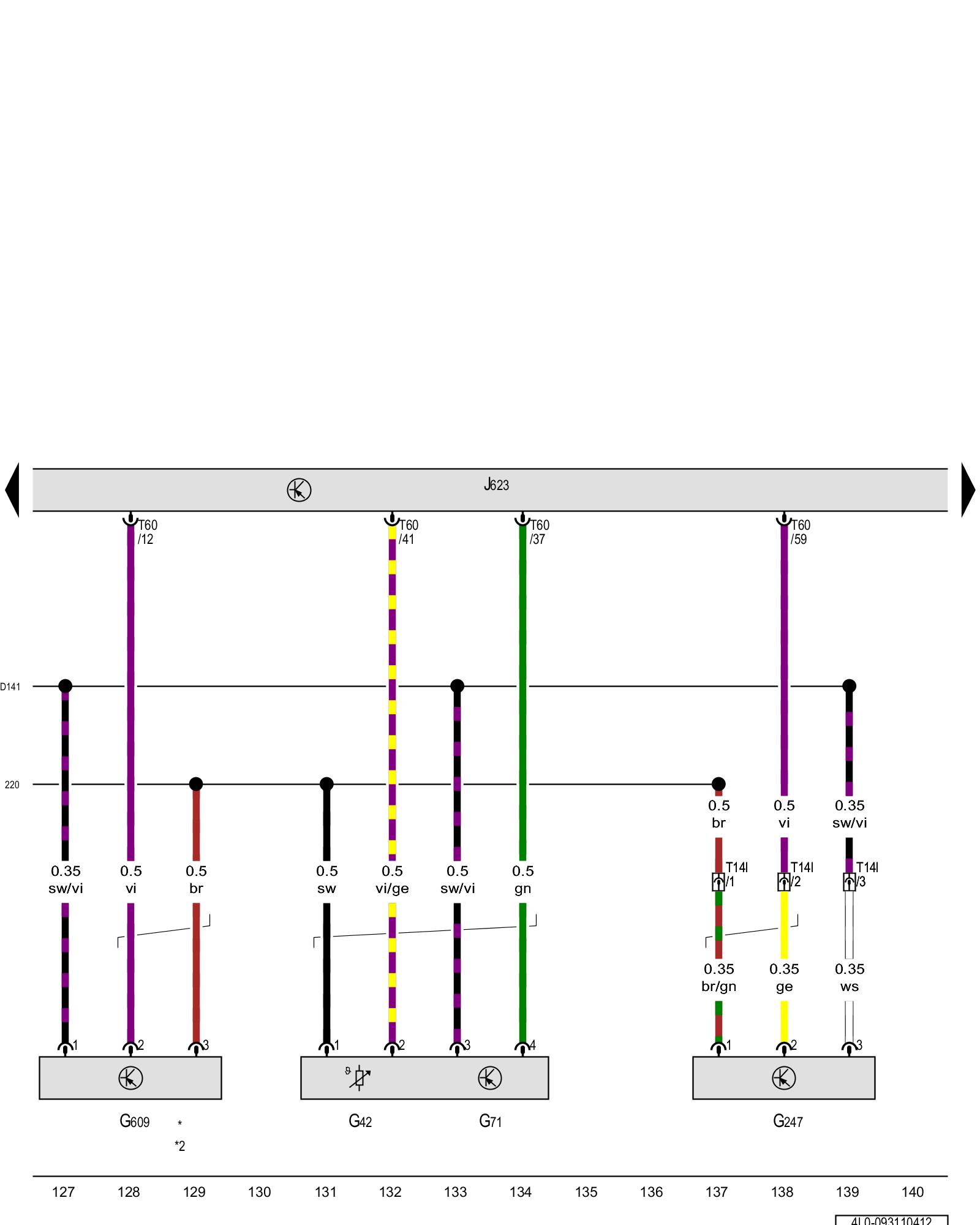

Diagram 93/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Intake air temperature sensor, Fuel pressure sensor, Secondary air injection sensor 1, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G42 - Intake air temperature sensor Locations

G71 - Manifold absolute pressure sensor Locations

G247 - Fuel pressure sensor Locations

G609 - Secondary air injection sensor 1 Locations

J623 - Engine control module Overview Of Control Modules

T14l - 14-pin connector, in the engine compartment, left

T60 - 60-pin connector Locations

(220) - Sensor ground connection (in engine compartment wiring harness)

(D141) - Connection (5V) (in engine wiring harness)

* - USA only

*2 - Omitted as a running change
