Diagram 93/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

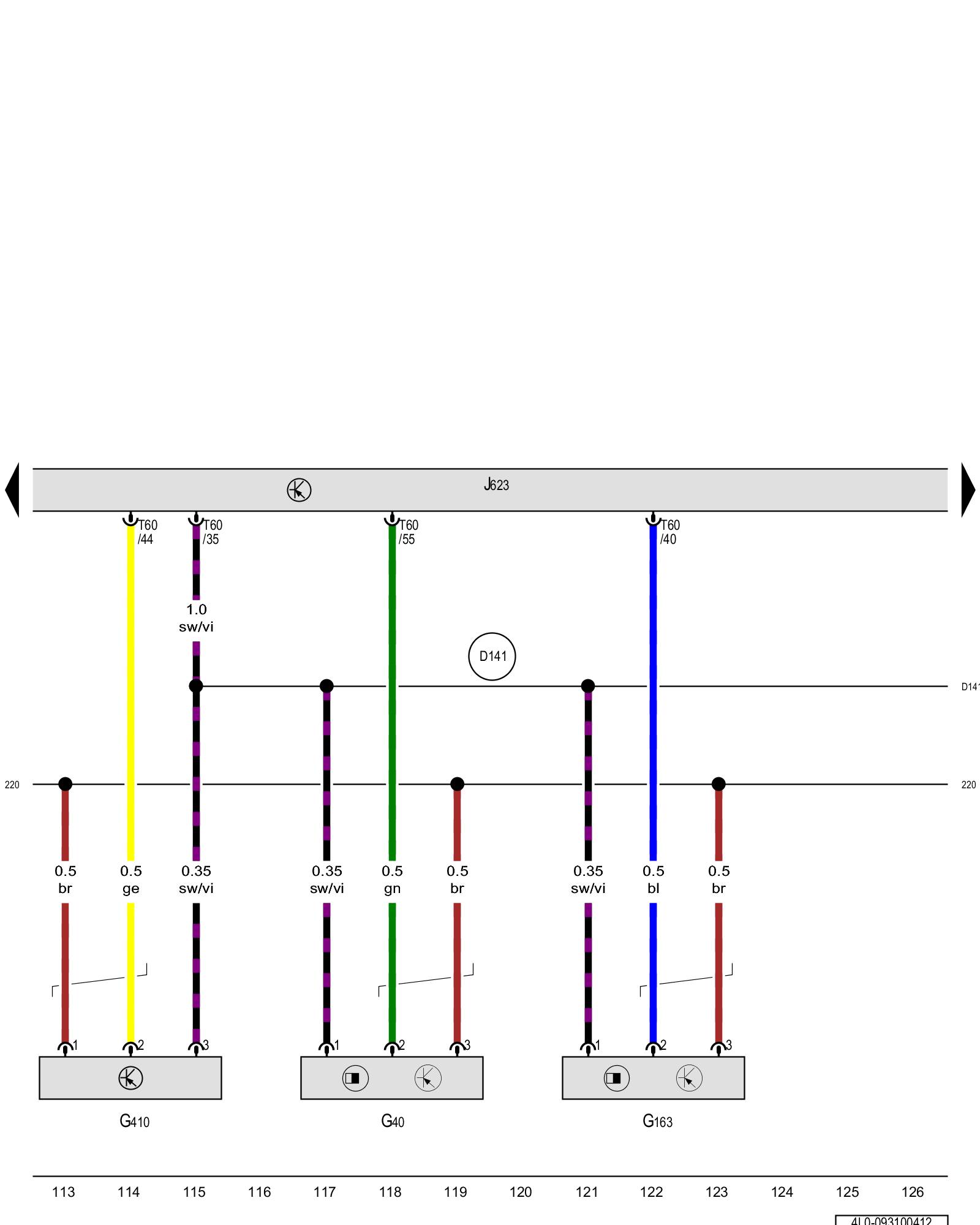

Camshaft position sensor, Camshaft position sensor 2, Low fuel pressure sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft position sensor Locations

G163 - Camshaft position sensor 2 Locations

G410 - Low fuel pressure sensor Locations

J623 - Engine control module Overview Of Control Modules

T60 - 60-pin connector Locations

(220) - Sensor ground connection (in engine compartment wiring harness)

(D141) - Connection (5V) (in engine wiring harness)
