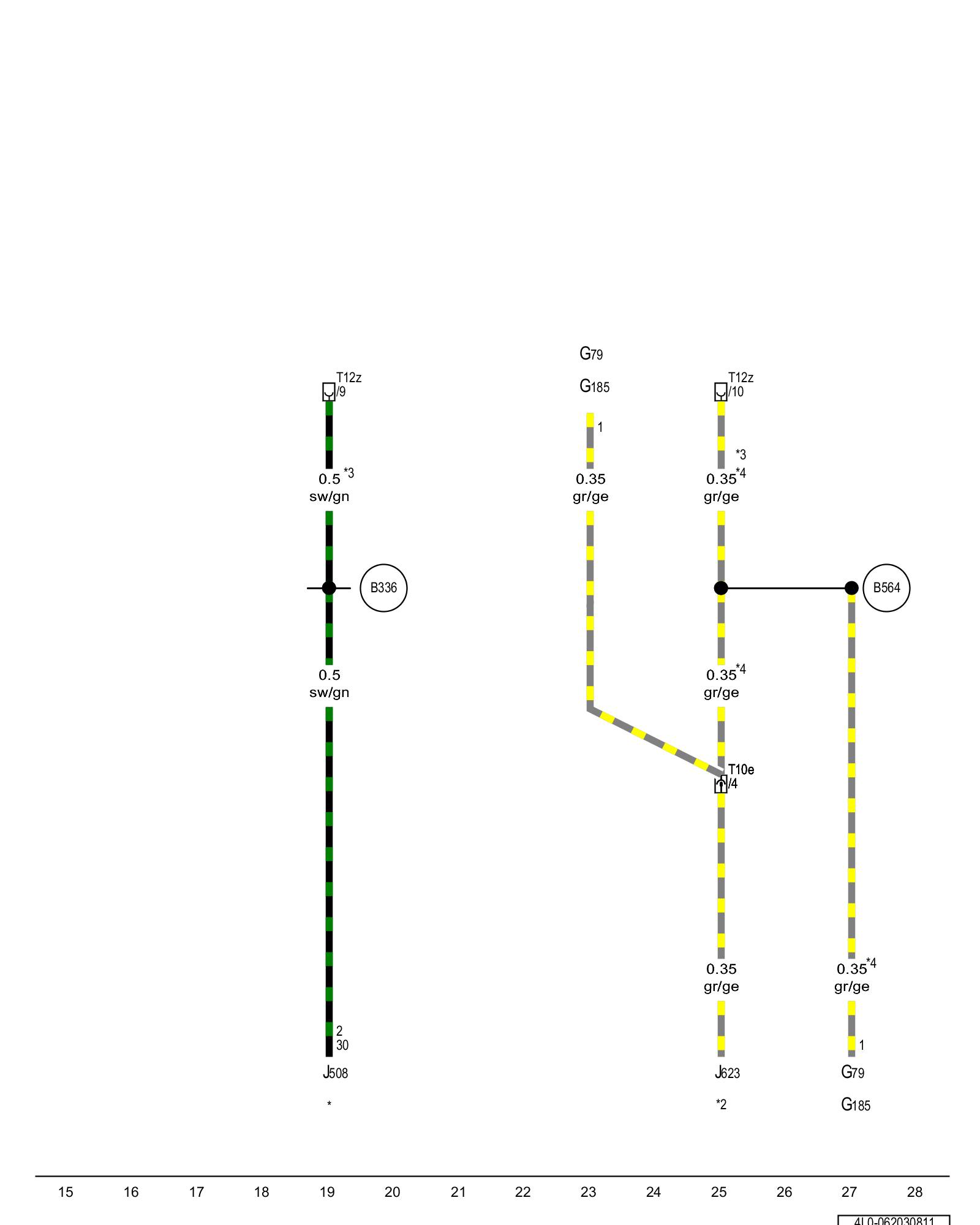

Diagram 62/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


12-pin connector





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G79 - Accelerator pedal position sensor Locations

G185 - Accelerator pedal position sensor 2 Locations

J508 - Brake lamp disable relay Overview Of Relay

J623 - Engine control module Overview Of Control Modules

T10e - 10-pin connector, in the plenum chamber E-box

T12z - 12-pin connector, behind the left luggage compartment side trim

(B336) - Connection 2 (54) (in main wiring harness)

(B564) - Connection 31 (in main wiring harness)

* - Relay and fuse carrier under the driver seat

*2 - Refer to applicable engine wiring diagram

*3 - Through November 2011

*4 - Only for vehicles with special functions interface

Previous Diagram 62/2 (Tracks 1-14)
