Diagram 15/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Garage Door Opener Control Head, Garage Door Opener Button





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

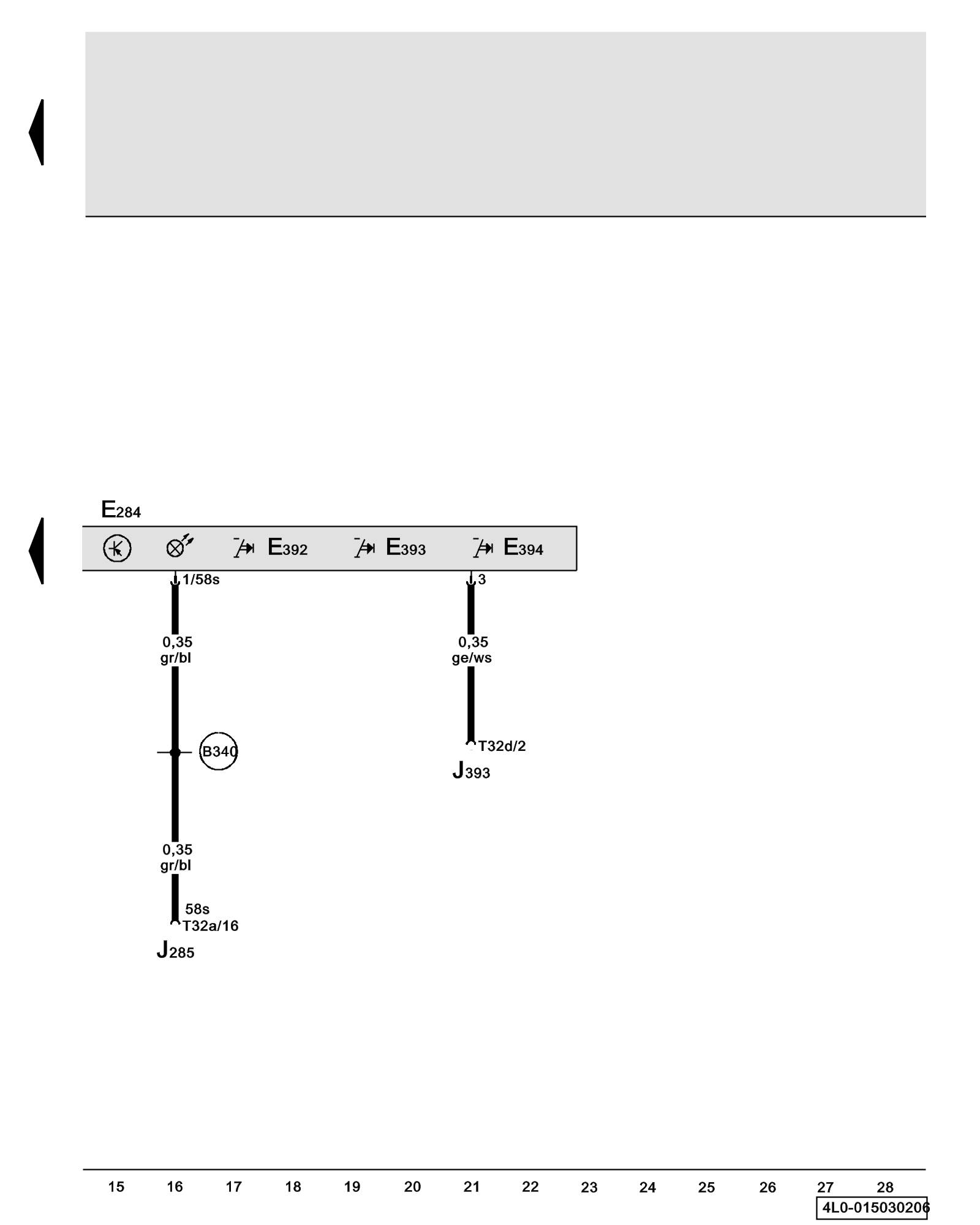

E284 - Garage Door Opener Control Head

E392 - Garage Door Opener Button 1

E393 - Garage Door Opener Button 2

E394 - Garage Door Opener Button 3

J285 - Instrument Cluster Control Module Overview Of Control Modules

J393 - Comfort System Central Control Module Overview Of Control Modules

T32a - 32-Pin Connector, grey, on instrument cluster control module

T32d - 32-Pin Connector, on comfort system central control module

(B340) - Connection 1 (58s) (in main wiring harness)

Previous Diagram 15/2 (Tracks 1-14)
