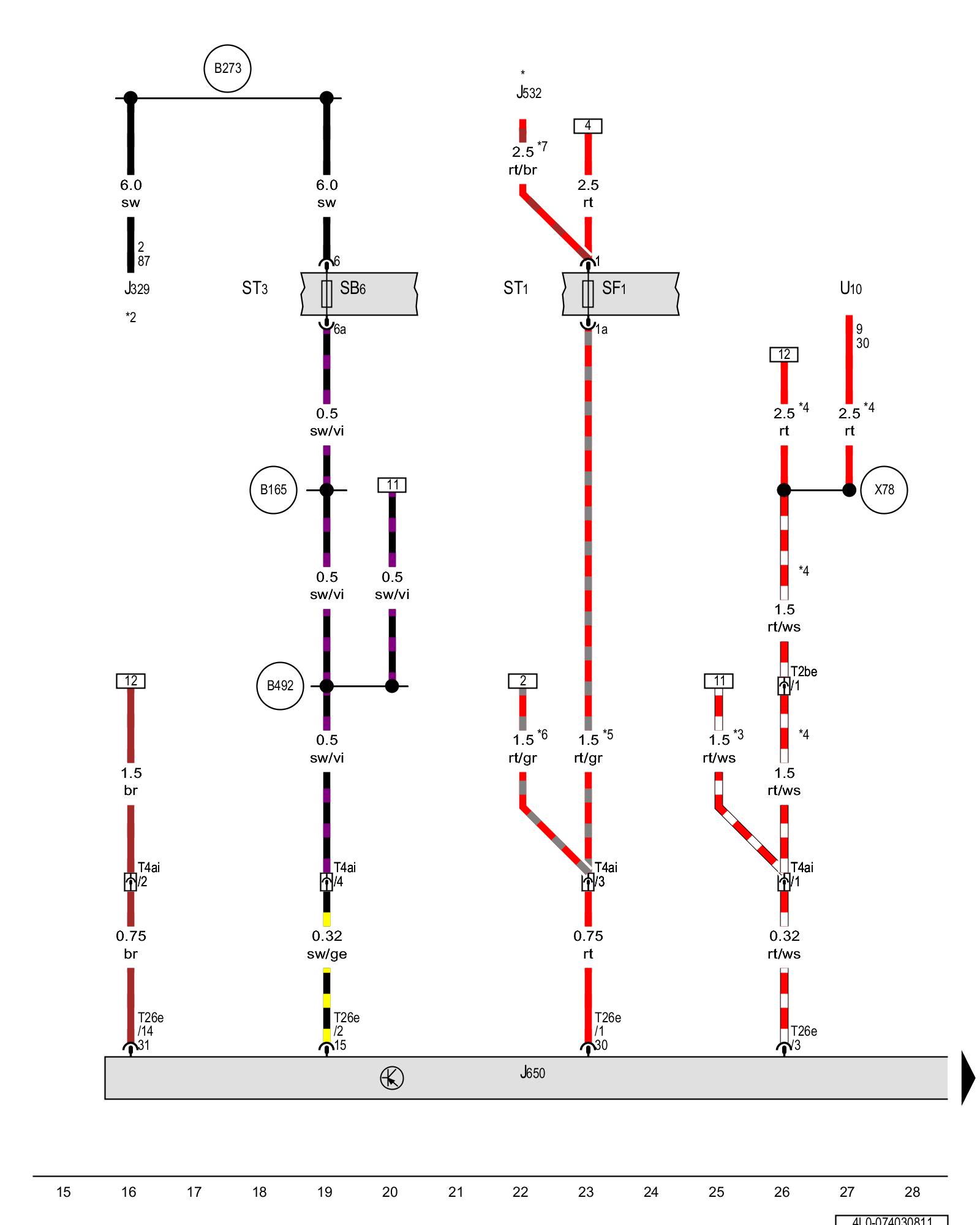

Diagram 74/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Multimedia system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J329 - Terminal 15 power supply relay Overview Of Relay

J532 - Voltage stabilizer

J650 - Multimedia system control module

ST1 - Fuse panel 1

SF1 - Fuse 1 (on fuse panel F) Overview Of Fuses

ST3 - Fuse panel 3

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

T2be - Double connector, behind the right luggage compartment side trim

T4ai - 4-pin connector, in the luggage compartment, right

T26e - 26-pin connector

U10 - Trailer socket

(B165) - Positive connection 2 (15) (in interior wiring harness)

(B273) - Positive connection (15) (in main wiring harness)

(B492) - Positive connection 3 (15) (in interior wiring harness)

(X78) - Connection 1 (in optional equipment wiring harness)

* - Refer to the applicable Start/Stop system wiring diagram

*2 - Relay and fuse carrier under the driver seat

*3 - Only for vehicles without a trailer socket

*4 - Only for vehicles with trailer socket

*5 - From June 2010

*6 - Through May 2010

*7 - Only for vehicles with Start/Stop system

Previous Diagram 74/2 (Tracks 1-14)

Next Diagram 74/4 (Tracks 29-42)
