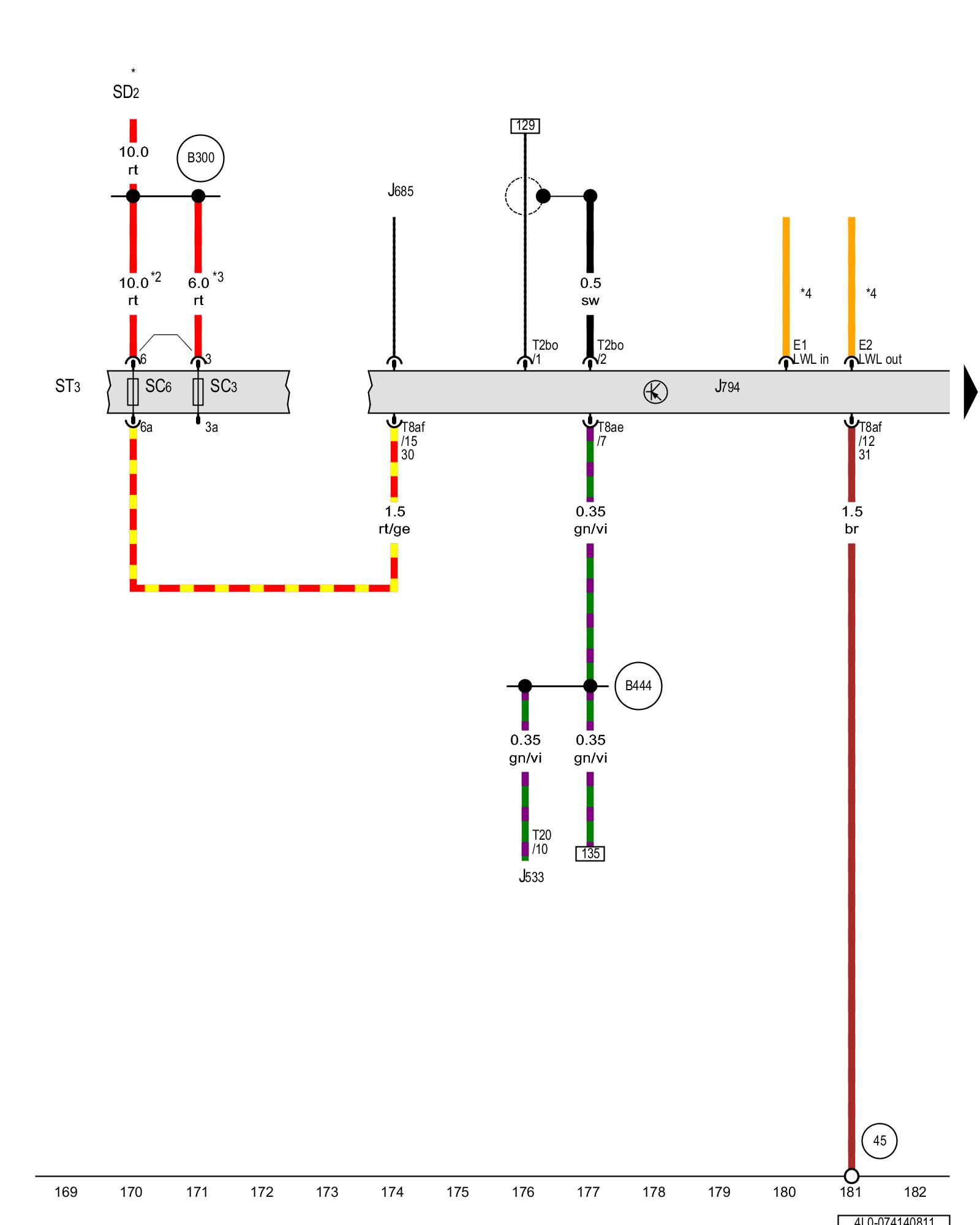

Diagram 74/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Information electronics control module 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Overview Of Control Modules

J685 - Front information display control head Component Locations

J794 - Information electronics control module 1 Component Locations

SD2 - Fuse 2 (on fuse panel D) Overview Of Fuses

ST3 - Fuse panel 3

SC3 - Fuse 3 (on fuse panel C) Locations

SC6 - Fuse 6 (on fuse panel C) Locations

T2bo - Double connector

T8ae - 8-pin connector

T8af - 8-pin connector

T20 - 20-pin connector

(45) - Ground connection behind instrument panel, center Locations

(B300) - Positive connection 4 (30) (in main wiring harness)

(B444) - OBD connection 1 (in main wiring harness)

* - Relay and fuse carrier under the driver seat

*2 - Through May 2010

*3 - From June 2010

*4 - Fiber optic cable
