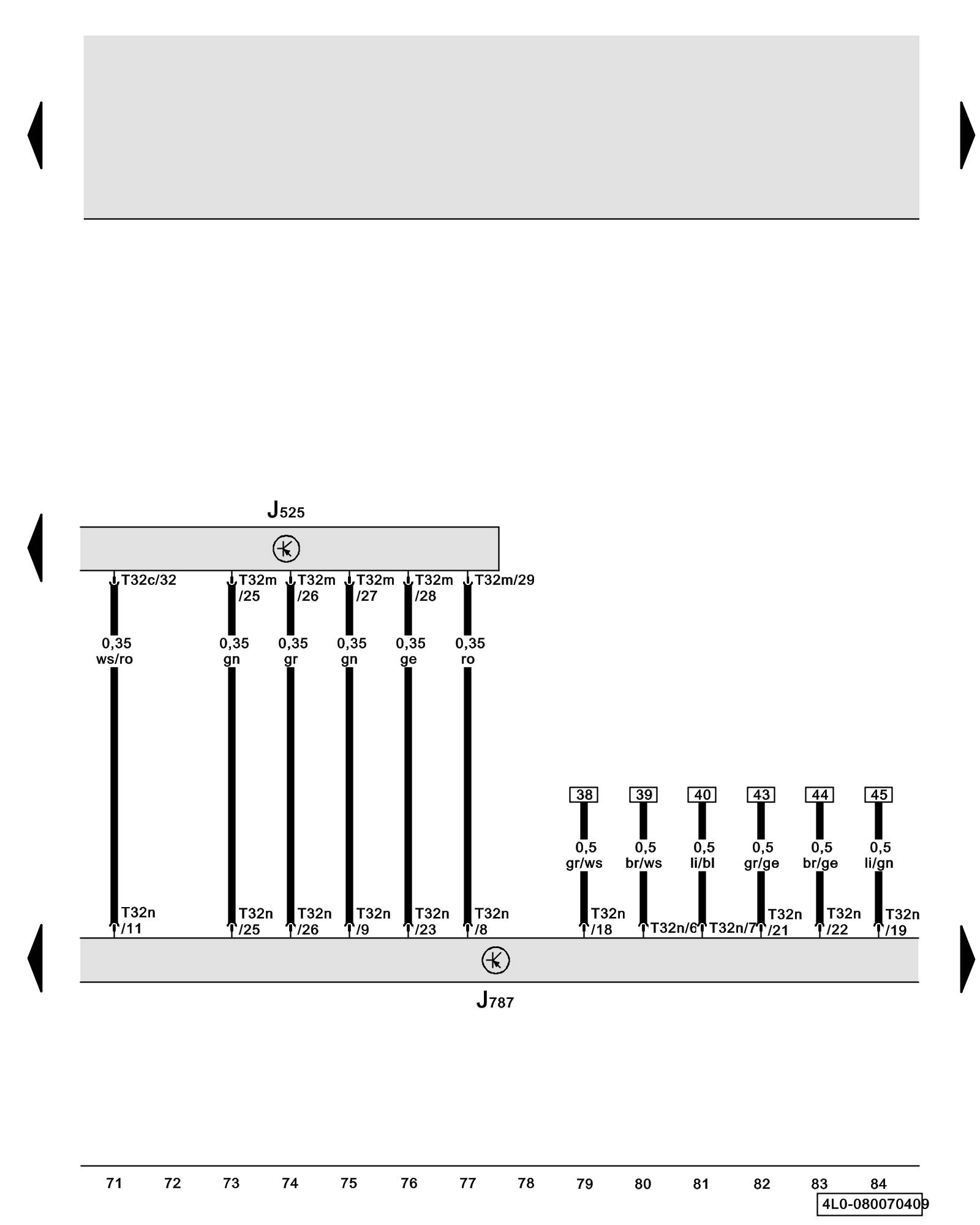

Diagram 80/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital Sound System Control Module, Digital Sound System Control Module 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital Sound System Control Module Component Locations

J787 - Digital Sound System Control Module 2 Component Locations

T32c - 32-Pin Connector, black, on digital sound system control module

T32m - 32-Pin Connector, black (Connector C), on digital sound system control module

T32n - 32-Pin Connector, black, on digital sound system control module 2
