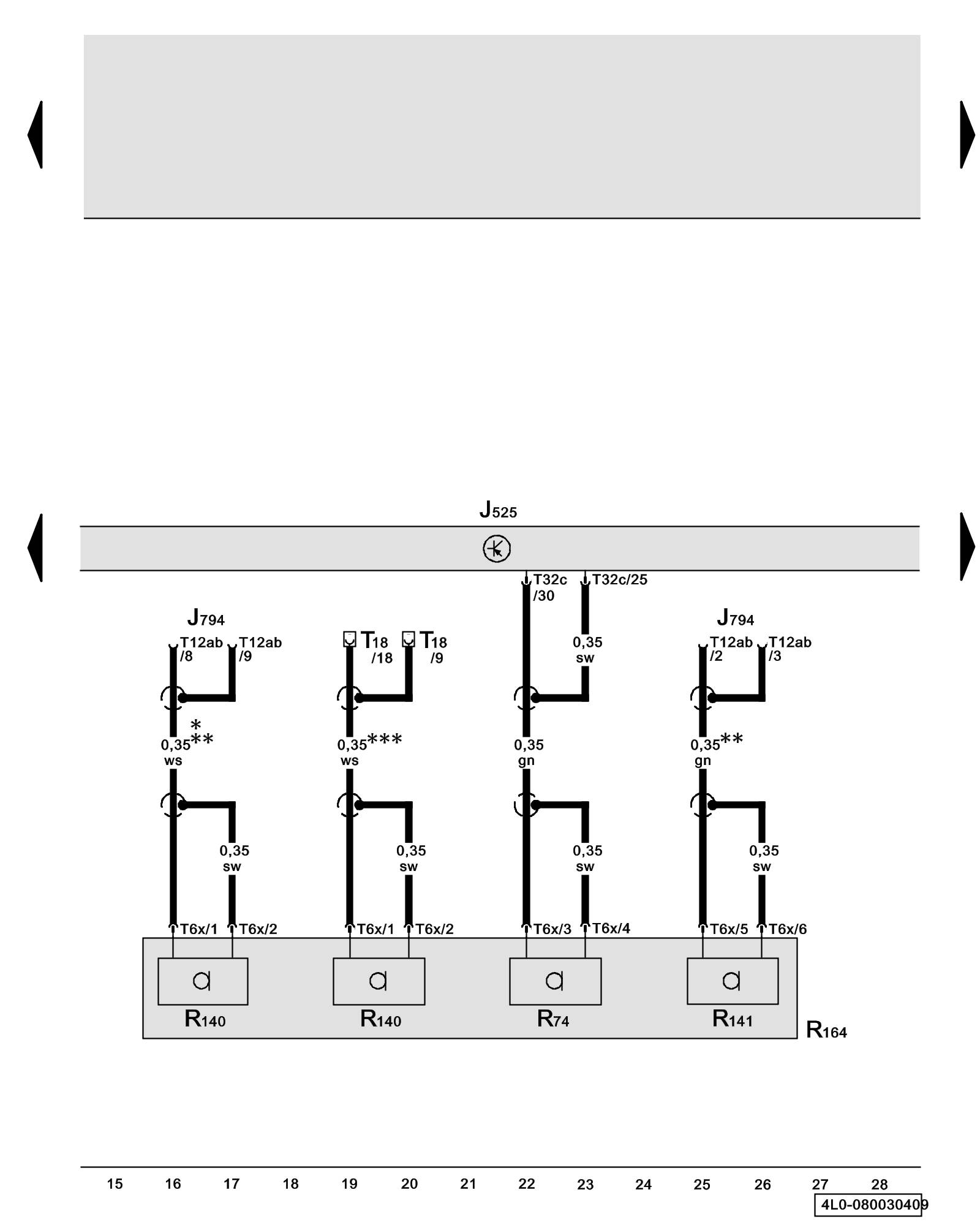

Diagram 80/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital Sound System Control Module, Microphone Unit (in front roof module)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital Sound System Control Module Component Locations

J794 - Control Module for Information Electronics 1 Component Locations

R74 - Inside Microphone Phone System Components Locations

R140 - Left Front Microphone Phone System Components Locations

R141 - Right Front Microphone Phone System Components Locations

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T12ab - 12-Pin Connector, blue (Connector B), on control module for information electronics 1

T18 - 18-Pin Connector, black, behind glove compartment

T32c - 32-Pin Connector, black, on digital sound system control module

* - Models with voice control

** - Models with telephone

*** - Models with cellular telephone preparation without hands free system (VDA-interface)

Previous Diagram 80/2 (Tracks 1-14)

Next Diagram 80/4 (Tracks 29-42)
