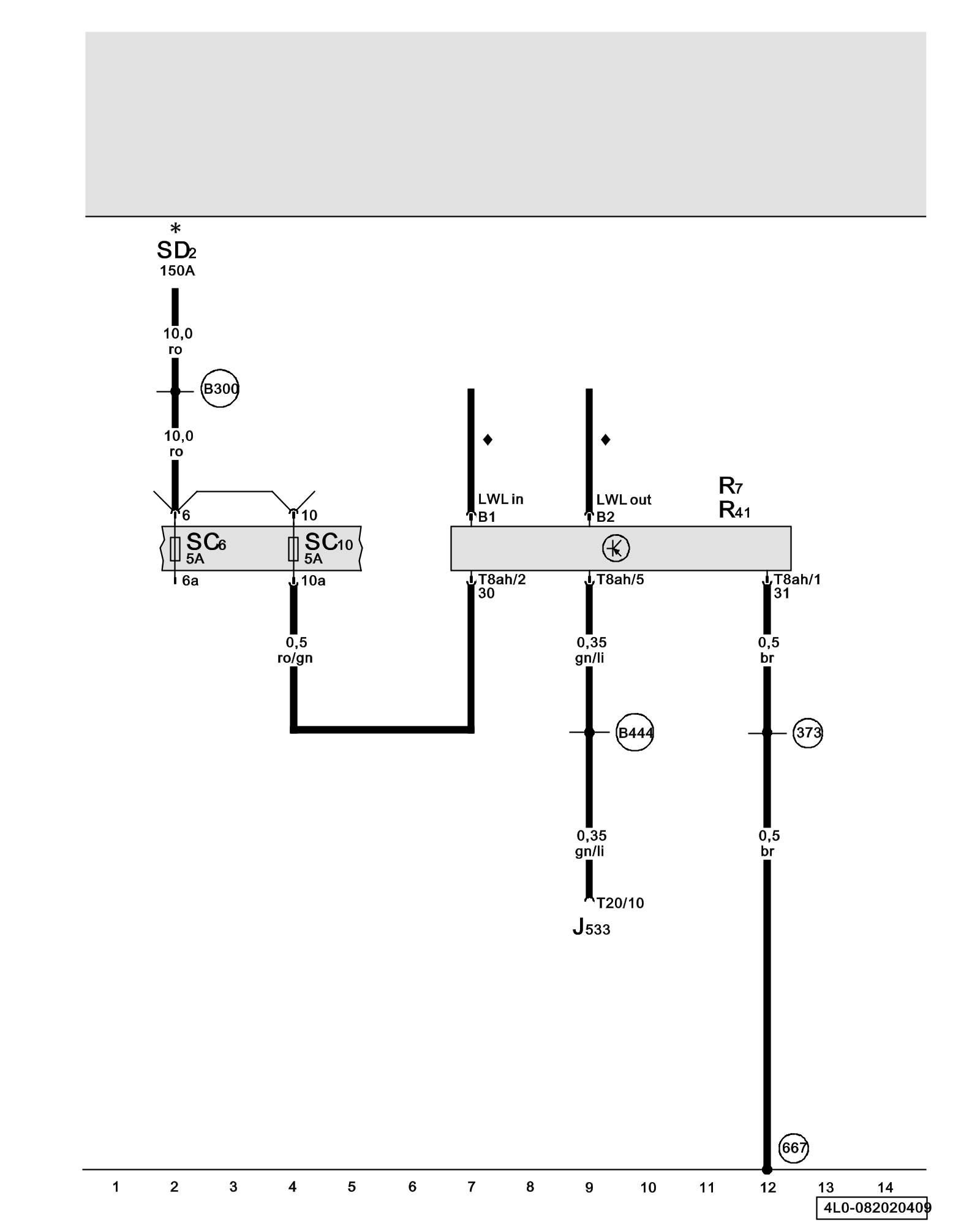

Diagram 82/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


DVD Changer, CD Changer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data Bus On Board Diagnostic Interface Overview Of Control Modules

R7 - DVD Player

R41 - CD Changer Component Locations

SC6 - Fuse 6 (on fuse panel C) Locations

SC10 - Fuse 10 (on fuse panel C) Locations

SD2 - Fuse 2 (on fuse panel D) Overview Of Fuses

T8ah - 8-Pin Connector, black

T20 - 20-Pin Connector, black, on data bus on board diagnostic interface

(45) - Ground Connection (behind instrument panel, center) Locations

(373) - Ground Connection 8 (in main wiring harness)

(B300) - Plus Connection 4 (30) (in main wiring harness)

(B444) - OBD Connection 1 (in main wiring harness)

* - Relay and fuse carrier below driver's seat

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)
